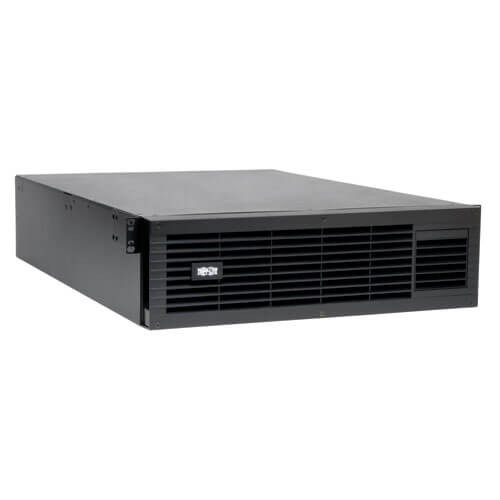

Product Overview
Features
Gives Your Compatible Tripp Lite UPS System Extended Runtime
The BP192V12RT3UTAA is compatible only with Tripp Lite’s SU5000RT4UHVTAA, SU6000RT4UHVTAA and other UPS systems that specify the use of this battery pack. Not only does it provide extended runtime, but it can also be daisy-chained using its rear connector to additional external battery packs for even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for simple installation.
Mounts in 3U of Space in 19 in. 4-Post Racks
This battery pack’s multi-use form factor supports stacking or mounting in 3U of space in EIA-standard 19-inch racks using the included 4-post rack-mounting brackets. The BP192V12RT3UTAA is also compatible with Tripp Lite’s 2-9USTAND for upright tower configuration and 2POSTRMKITHD for 2-post racks (both accessories sold separately).
TAA-Compliant for GSA Schedule Purchases
The BP192V12RT3UTAA is compliant with the Federal Trade Agreements Act for GSA Schedule purchases.
2-Year Warranty and Environmentally Responsible Design
The BP192V12RT3UTAA comes with a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
System Requirements
- Tripp Lite SU5000RT4UHVTAA or SU6000RT4UHVTAA UPS system
Package Includes
- BP192V12RT3UTAA 192V External Battery Pack, 3U Rack/Tower, TAA
- Rack-mounting hardware
- Owner’s manual
Specifications
OVERVIEW
| UPC Code | 037332217806 |
INPUT
| UPS Input Cord Length (ft.) | 3 |
| Input Phase | Single-Phase |
OUTPUT
| Overload Protection | 50A DC output fuse |
BATTERY
| Expandable Battery Runtime | Includes a second input/output connector to daisy-chain multiple battery packs |
| Expandable Runtime | Yes |
| DC System Voltage (VDC) | 192 |
| UPS Connection | Detachable cable with UPS specific DC connector (90 cm length, 8 gauge) |
| Typical Battery Lifespan | 4-6 years typical (North America) |
PHYSICAL
| Material of Construction | Steel |
| External Battery Pack Form Factor | Rack/Tower |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITHD ); Tower ( 2-9USTAND ) |
| Minimum Required Rack Depth (inches) | 36 |
| Rack Height | 3U |
| Shipping Dimensions (hwd / in.) | 11.00 x 23.00 x 33.00 |
| Shipping Weight (lbs.) | 200.00 |
| Unit Dimensions (hwd / in.) | 5.25 x 17.5 x 28 |
| Unit Weight (lbs.) | 174.00 |
STANDARDS & COMPLIANCE
| Certifications | TAA Compliant |
WARRANTY
| Product Warranty Period (U.S. & Canada) | 2-year limited warranty |
| Optional Coverage | 3 year, 5 year, next day and on-site warranty coverage available |
