Description
Features

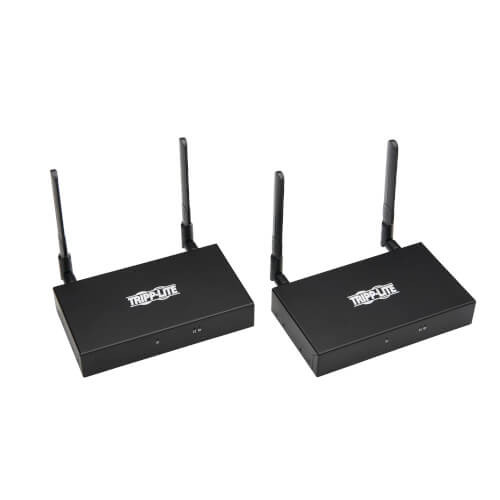

All-in-One HDMI Wireless Extender for Displaying Video in Boardrooms and Conference Rooms
This complete wireless HDMI transmitter and receiver system is recommended for video presentations in conference rooms, trade shows, home theaters, bars, restaurants, schools, digital signage and other applications in which connecting long video cables could be a burden. The B126-1A1-WHD1 extends 1080p video and stereo audio signals from an HDMI source device to an HDMI display up to 165-ft. (50.29 m) away. No bulky or costly cabling infrastructure is needed.
Plug-and-Play Operation for Quick Setup and Immediate Use
The wireless HDMI audio/video transmitter and receiver set works right out of the box with no software or drivers required. Mounting hardware is included for installing the units on walls or other flat surfaces. Connect the receiver to the display and the transmitter to the source with user-supplied HDMI cables (such as Tripp Lite's P568-Series). Then, connect the included IR cables for remote control, and plug the dual power supplies into an AC outlet.
Wireless Transmission Saves You Money on Cable and Installation Costs
The B126-1A1-WHD1 eliminates more than just hassles. You'll save on the costs of cabling infrastructure and the labor to install it. Cable clutter is reduced, and you will enjoy more flexibility in placement of the source and display with no cables to relocate when you want to reconfigure the room. The transmitter and receiver units communicate over a 5 GHz wireless frequency that allows fast data transmission and reduced interference from other wireless sources. Be sure the transmitter and receiver share a direct line of sight for best results.
IR Pass-Through Technology Lets You Control the Video from an Extended Distance
The IR cables let you control your source device with its remote (play, pause, fast forward, etc.), while you're standing near the receiver located up to 165-ft. (50.29 m) away. Make sure the transmitter's IR bulb is within sight of the source and the receiver's IR bulb is in range of the source's remote.
Transmits Crystal-Clear 1080p Video for High-Definition Presentations
The B126-1A1-WHD1 ensures high-definition performance in a one-to-one application, where there is less obstruction to occur. It supports video resolutions up to 1920 x 1080 (1080p) at 60 Hz with 24-bit Deep Color (8 bits per channel) and stereo audio. AES 128 encryption protects your wireless transmissions. LEDs indicate when the transmitter and receiver units are receiving power, transmitting data and connected to a wireless signal.
System Requirements
- Source device with HDMI output (Blu-ray player, cable box, laptop)
- Display device with HDMI input (HDTV, projector, monitor)
Package Includes
- Transmitter unit
- Receiver unit
- IR-In cable
- IR-Out cable
- (4) Antennas
- (2) External power supplies (Input: 100–240V, 50/60 Hz, 0.6A; Output: 5V 3A)
- (8) International plug adapters (North America, Europe, United Kingdom, Australia)
- Mounting hardware
- Owner’s manual
Specifications
OVERVIEW
| UPC Code | 037332201201 |
| Product Type | Extender Kit |
| Technology | HDMI; Wireless |
VIDEO
| Max Supported Video Resolution | 1920x1080 (1080p @ 60Hz) |
| Max Supported Color Depth | 24-bit True Color |
| HDR Support | No |
| 3D Video Supported | Yes |
| Maximum Signal Range (ft) | 165 |
AUDIO
| Audio Specification | PCM |
POWER
| AC Plug Type | NEMA 1-15P; CEE 7/16 Schuko; BS1363; AS/NZS 3112 |
| Power Over Cable (PoC) Support | No |
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50-60Hz / 0.6A |
| External Power Supply Output Specs (V / A) | 5V/3A |
| External Power Supply Cord Length (ft.) | 4 |
| External Power Supply Cord Length (m.) | 1.2 |
| DC Barrel Plug | OD: 5.5 x 2.1 x 10mm, Positive Pin, Negative Sleeve |
| Power Consumption (Watts) | 8.5 |
| Power Consumption Detail | Tx: 8.5; Rx: 5.5 |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators | Blue (Power); Orange (Data Transmission); Green (Connection) |
PHYSICAL
| Material of Construction | Steel |
| Color | Black |
| Number of Displays | 1 |
| Receiver Unit Dimensions (hwd / cm.) | 3.1 x 17.3 x 9.8 |
| Receiver Unit Dimensions (hwd / in.) | 1.2 x 6.8 x 3.9 |
| Receiver Unit Weight (kg) | 0.53 |
| Receiver Unit Weight (lbs.) | 1.2 |
| Shipping Dimensions (hwd / in.) | 2.40 x 9.90 x 17.30 |
| Shipping Weight (lbs.) | 4.60 |
| Transmitter Unit Dimensions (hwd / cm.) | 3.1 x 17.3 x 9.8 |
| Transmitter Unit Dimensions (hwd / in.) | 1.2 x 6.8 x 3.9 |
| Transmitter Unit Weight (kg) | 0.53 |
| Transmitter Unit Weight (lbs.) | 1.2 |
| Unit Packaging Type | Box |
| Housing | Metal |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
| Relative Humidity | 0% to 95% RH, Non-Condensing |
| BTUs | Tx: 29 BTU/Hr; Rx: 18.8 BTU/Hr |
COMMUNICATIONS
| Signal Range (ft.) | 164 |
| EDID Compatible | Yes |
| IR Remote Extension Support | Yes |
| RS-232 Serial Extension Support | No |
| Consumer Electronics Control (CEC) Supported | No |
| Latency | 120ms |
| USB Extension Support | No |
CONNECTIONS
| Number of Ports | 1 |
| Side A - Connector 1 | HDMI (FEMALE) |
| Side B - Connector 1 | HDMI (FEMALE) |
| Connector Plating | Gold |
FEATURES & SPECIFICATIONS
| HDCP Specification | 1.2 |
| Driver Required | No |
| 10/100 Ethernet Extension Support | No |
| Built-In Equalizer | No |
REMOTE ACCESS
| Modem Port | No |
STANDARDS & COMPLIANCE
| Certifications | Tested to CE, FCC, RoHS, REACH |
| External Power Supply Certifications | CE; FCC; UL; C-Tick; GS; RoHS |
WARRANTY
| Product Warranty Period (Worldwide) | 1-year limited warranty |
