Product Overview
DESCRIPTION

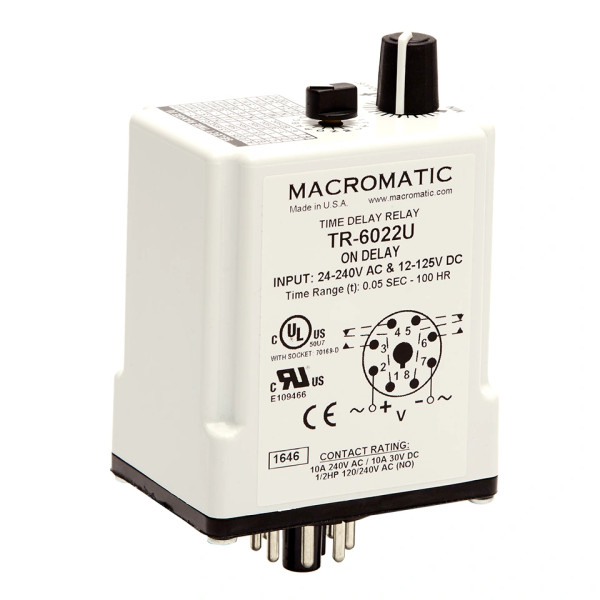

On Delay, 12-125V DC 24-240VAC, 10 amp DPDT, 50ms-100 Hrs,Upon application of input voltage, the time delay (t) begins. At the end of the time delay (t), the output is energized. Input voltage must be removed to reset the time delay relay & de-energize the output. Plug-in
FEATURES
- Universal input voltage: 24-240V AC & 12-125V DC
- Each unit has 16 timing ranges built-in covering 0.05 seconds-100 hours
- Selecting a range is easy using a rotary switch (no math is required or DIP switches to set)
- Multi-function versions
- 10A output contacts can handle most pilot duty & fractional HP loads
RESOURCES
