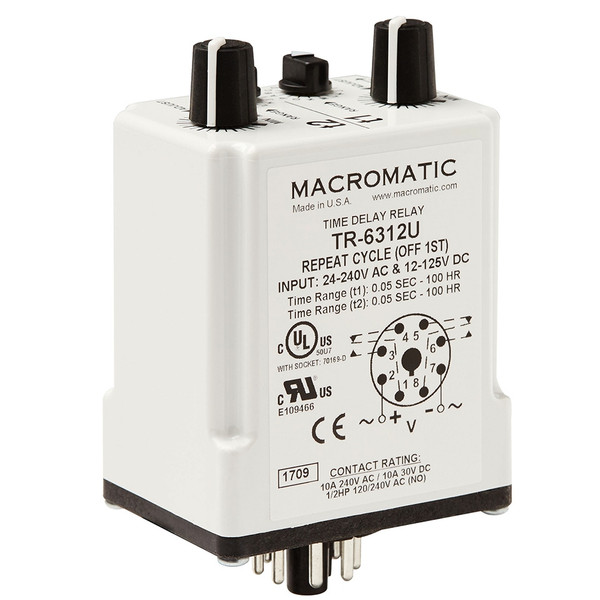

Macromatic TR-6312U

$119.45
SKU:
TR-6312U
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Description of Function

Upon application of control voltage, the time delay (t1) begins. At the end of the time delay (t1), the output is energized and remains in that condition for the time delay (t2). At the end of this time delay, the output is de-energized and the sequence repeats until control voltage is removed.

Features

  • Each unit has 16 timing ranges built-in covering 0.05 seconds-100 hours
  • Selecting a range is easy using a rotary switch (no math is required or DIP switches to set)
  • Universal input voltage: 24-240V AC & 12-125V DC
  • Uses industry-standard 8 pin octal sockets
  • 10A output contacts can handle most pilot duty & fractional HP loads

Specifications

  • Function: Repeat Cycle (Off 1st)
  • CONTROL VOLTAGE: 24-240V AC & 12-125V DC
  • Output: 10A DPDT
  • TIMING RANGE: 50 Ms – 100 Hrs
  • TIMING RANGE 2: 50 Ms – 100 Hrs
  • MOUNT: 8-Pin Socket
  • Setting Adjustment: Analog
  • Enclosure Style: Plug-In
  • Configuration / Contact Rating: DPDT 10A @ 240V AC/30V DC, 1/2HP @ 120/240V AC (N.O.),1/3HP @ 120/240V AC (N.C.), B300 & R300; AC15 & DC18
  • Approvals: UL Recognized for the U.S. and Canada, CE
  • AC Operation: +10%/-15% of nominal at 50/60Hz
  • DC Operation: +10%/-15% of nominal
  • Load (Burden): 3 VA
  • Setting Accuracy: Maximum Setting (Adjustable): +5%, -0%
  • Setting Accuracy: Minimum Setting (Adjustable): +0%, -50%
  • Repeat Accuracy: +0.1% or +50ms, whichever is greater
  • Reset Time: 0.1 Seconds
  • Start-up Time: 0.05 Seconds
  • Maintain Function Time: 0.01 Seconds
  • Temperature: Operating: -28° to 65° C (-18° to 149° F)
  • Temperature: Storage: -40° to 85° C (-40° to 185° F)
  • Life: Mechanical: 10,000,000 operations
  • Life: Full Load: 100,000 operations
