Product Overview
DESCRIPTION
Sprecher + Schuh offers a full line of softstarter controllers that utilize reliable solid state electronics to soft start three phase induction motors. Various options such as “soft-stopping” and braking are also available. As standard, the Sprecher + Schuh Softstarter includes a built-in electronic overload, integral bypass and motor starting capabilities for both star-delta and standard squirrel-cage induction motors, advanced protection and diagnostics in a compact, maintainable, modular, cost-effective package. Because there are no moving parts, Softstarter Controllers require no regular maintenance to repair or replace worn out components. All units can be easily integrated into a new system or used to upgrade an existing electromechanical system (across-the-line, autotransformer, part-winding or wye-delta) using the same control circuitry.
The PCS Softstarter Controller is Sprecher + Schuh’s solid-state controller with rich features at an economical price. This softstarter is specifically designed to start 3-phase motors (up to 400HP@460V / 500HP@575V), but is very compact, easy to use and DIN-rail mountable for models up to 85A. Four standard starting modes
are available with the PCS Controller: Soft Start, Soft Start with Selectable Kick-Start, Current Limit Starting, Soft Start with Soft Stop. All PCS Softstarters are designed to con- trol either a standard 3-phase squirrel-cage induction motor or a wye-delta motor (700HP @ 460V/900HP @ 575V Y-D).

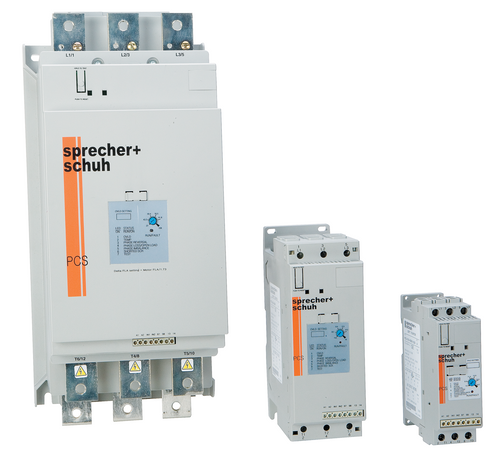

PCS Softstarters come in three differ- ent frame sizes. The smallest frame is from 3A...37A, the middle size is from 43A...85A and the largest frame size is 108A...480A. These units are available from 200V...600V - 50/60 Hz. This as- sures the devices can be used anywhere in the world.
FEATURES
- Microprocessor controller designed for 3-phase motors up to 480A (3...85A DIN-rail mountable)
- •Provides three different starting modes and selectable soft stop mode
- Includes built-in electronic overload and bypass contactor
- All models wye-delta compatible (6 lead) up to 830A.
