DESCRIPTION
CS7 Industrial Control Relays share the same design as our modern CA7 contactor range. They are compact and designed for heavy-duty industrial control applications where reliability and versatility are essential. Three models for any control application: Standard, Master and Bifurcated.
The CS7 line also includes voltage options with Electronic DC Coils. CS7E Industrial Relays are the same size as AC relays which results in a lower depth than typical DC relays. CS7E relays are more energy efficient, easier to wire and promote uniform panel appearance. Available from 12V to 220V DC.

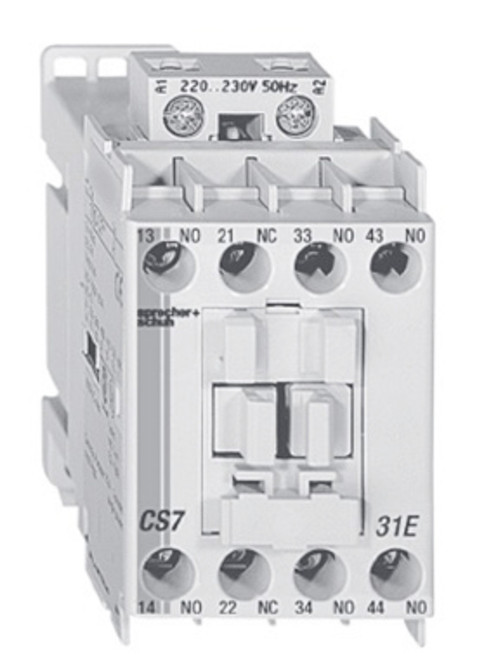

Please use the picture for reference only. Please use the spec sheet below to determine the proper part number for your application.
FEATURES
- Standard
- The standard CS7 relay utilizes x-stamped contact technology that reliably switches typical control circuits up to 10A (AC-15).
- Master
- For master relay circuits requiring higher amp capacity, the CS7-M Master Relay is designed for control circuits up to 15A (AC-15).
- Bifurcated
- For applications requiring low energy switching such as PLC's or other electronic circuits, the CS7–B relay with bifurcated contacts is designed for 20 million operations down to a signal level of 5V @ 3mA. The bifurcated H-bridge design divides each movable gold contact into two sections at the tip of the spanner which provides a higher degree of reliability for low signal applications.
SPECIFICATIONS
- IEC industrial relays
- Mechanically linked contact performance per IEC 60947-5-1
- Gold plated, bifurcated version for low level switching applications
- Master control relay version rated 15 A (AC-15)
- Solid-state and pneumatic timing modules
- 4…10 poles
