Product Overview

Overview

The CA7 contactor series represents the most modern and flexible IEC power contactor available today. A wide selection of contactors covers the entire CA7 horsepower range (up to 75HP @ 460/575V). Six of the contactors are only 45mm wide, an extremely small footprint for such rugged performance.

Product Comparison

CA7 Series Contactors

Covers up to 75HP industrial applications
Features small dimensions, as little as 45mm wide
Uses interchangeable accessories for all contactor sizes
Provides flexibility with reversible coils for group installation
Has dual-cage clamp lugs on CA7-30 and larger units
Designed and tested with respect to Type 1 and 2 Coordination

CA9 Series Contactors

Covers up to 900HP industrial applications
Provides a dimensional advantage with a smaller size and footprint
Features a universal electronic AC/DC coil
Has various application selections, with IEC solutions up to 2650A
Includes expanded certifications
Provides extended life with arc quenching technology

CA8 Series Contactors

Provides commercial-grade performance for motors up to 7.5 HP
Features low-profile design and 45mm width
Maintains narrow width with modular, snap-on accessories
Performs up to 700,000 electrical and 15,000,000 mechanical operations

Specifications

Same Small Size for Most DC Applications
Type 1 And Type 2 Coordination
Advanced Safety And Reliability Features
Modular Accessories Are Common To All Devices
Reversible Coil Provides Total Flexibility
Dual Power Terminals Speed Wiring
CA7 contactors meet IEC, UL and CSA standard requirements.
CAN7 contactors are UL Listed and rated in accordance with the requirements of NEMA standards publication ICS-2 (NEMA rated).
CNX contactors are standard CA7 contactors that have been tested, approved and labeled by UL for heating ventilation and air conditioning (HVAC) applications.
CAL7 Lighting Contactors are used to control a wide variety of lighting loads.

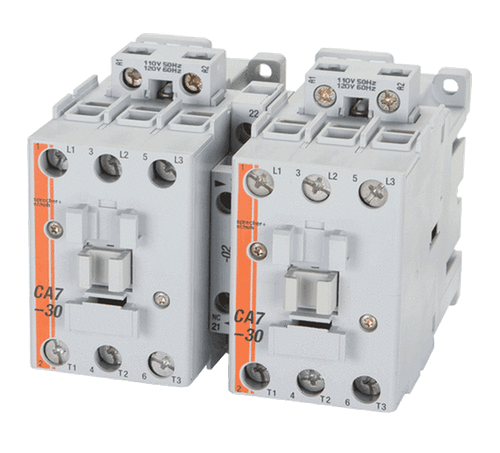

CA7Y2 hydraulic elevator wye-delta contactors are a special application that consists of a pair of mechanically
