DESCRIPTION

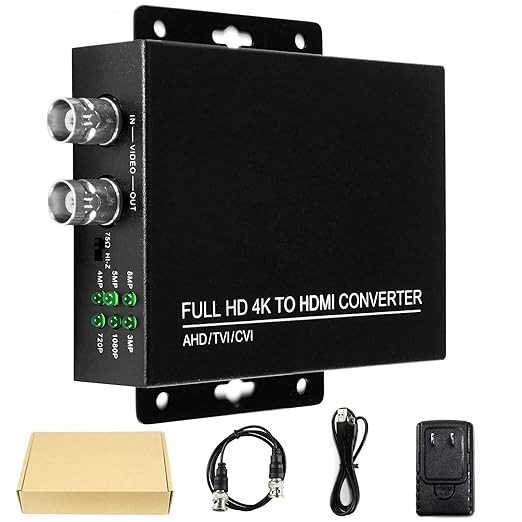

- This converter works with CVBS, AHD, CVI, TVI cameras. (It converts security camera signals to HDMI monitor). HDMI output 1080P 60Fps, connect HDMI output cable, HD-LINK light, display yellow light.Long transmission distance (500-700 meters through coaxial cable). Different resolution, different transmission distance. It converts TVI CVI AHD CVBS BNC video signal to HDMI.
- Full HD 4K to HDMI converter is plug-and-play and can automatically identify 720P/1080P/3MP/4MP/5MP/8MP resolution, and has LED indicator to show what resolution the video input has detected.
- Full HD 4K to HDMI converter has HDMI output port and DV 5V micro-USB port.The device uses 5V/1A power supply, and power indicator stays on after the converter is powered on.
- When the IN port of the converter is connected to the camera, and the OUT is not connected to the DVR, please set the impedance switch to 75Ω. When the IN port of the converter is connected to the camera and the OUT port is connected to the DVR, please set to HI-Z.
- The size of the CVI/TVI/AHD to HDMI converter is 109mm x 94mm x 25mm, the weight of converter is 0.18kg.It features a sturdy metal housing, with heat dissipation holes and mounting holes on both sides, easy to dissipate heat and install.
