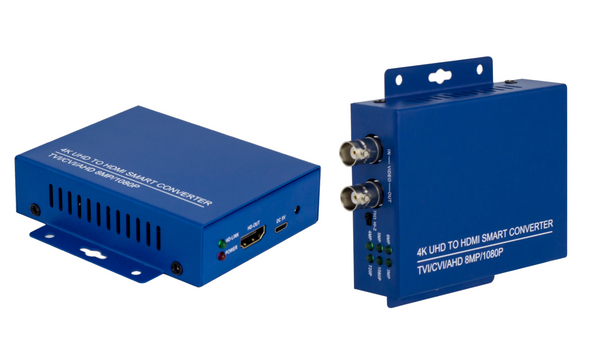

Product Overview
FEATURES
- Power connection The device uses 5V 2A power supply, connected to the power. can be used normally, power indicator light.
- Functions Introduction:
- (1) CVI/TVI/AHD/CVBS to HDMI, HDMI output 1080P 60FPS, connect HDMI output cable, HD-LINK light, display yellow light.
- (2) Support up to AHD/TVI/CVI 8MP test.
- (3) One channel AHD/TVI/CVI/CVBS loop out.
- (4) Auto recognition 720P/1080P/3MP/4MP/5MP/8MP
- (5) Resolution, indicator visual display.
- 75Ω HI-Z Impedance switch
- When the IN port of the converter is connected to the camera, and the OUT is not connected to the DVR, please set the impedance switch to 75Ω.
- When the IN port of the converter is connected to the camera and the OUT port is connected to the DVR, please set it to HI-Z.
