Product Overview

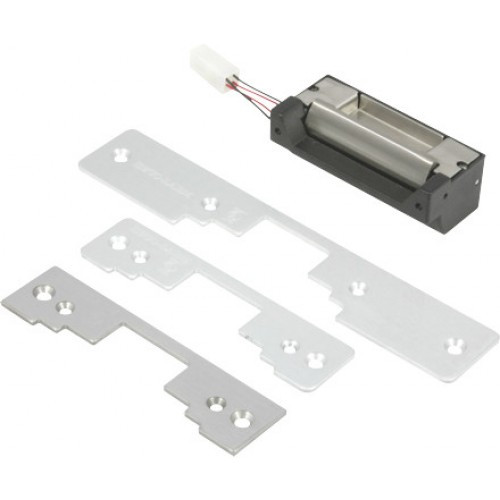

Universal Electric Door Strike for Metal and Wood Doors
The SECO-LARM® Universal Door Strike can be used with virtually any cylindrical-locking system and can be configured for use in wood, aluminum, or metal doors. Included are three different-sized faceplates that can be easily installed on the strike to match the specific type of door frame.
- UL 1034 Burglary
- Field-programmable in just seconds for fail-secure or fail-safe applications
- The SECO-LARM Electric Door Strikes convert cylindrical lock sets to an electronic access controlled locking system
- Can be used on virtually any cylindrical door locking system
- Use of an optional digital keypad with the unit assures high security without the need for a key
- Easily connects to SECO-LARM's Electronic Keypads
- Suitable for office-type applications
- ANSI-sized faceplates - 4-7/8"x1-1/4"x1-1/4" (124x32x32 mm) and 7-15/16"x1-7/16" (202mmx37mm)
- Symmetrical-sized. Reversible for right-handed or left-handed doors
- Low profile: strike is only 1-1/4" deep for use with hollow aluminum frames
- Powered by a solenoid, not a buzzer coil
- Jaw strength 2,000 pounds
- Stainless steel lip (keeper) for strength and long life
- Non-polarized connection. Wires can be reversed
- Current draw 280mA@12VDC, 140mA@24VDC
- Tested to 1 million cycles
- Power connector for easier installation
- CE approved and UL listed
Other Information
Seco-Larm orders require a $300 combined minimum. Orders under $300 can be fulfilled with additional fees. Please contact us about possible orders under this amount.
