Product Overview

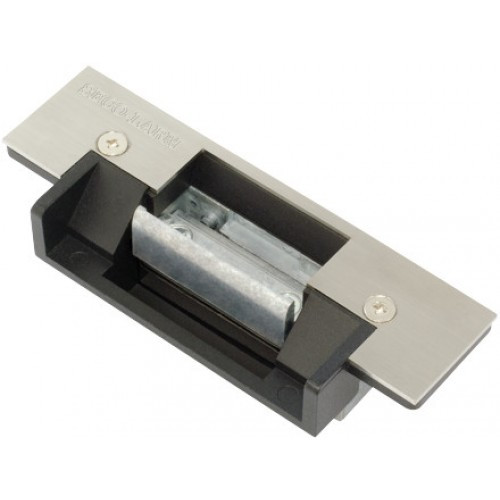

Reversible Electric Door Strike w horizontal adjustment for wood & metal doors, fail secure
- 1/4" Horizontal keeper adjustment compensates for installation difficulties such as warped doors, different-sized latch bolts, etc.
- Unique design accommodates both wood and metal doors
- Fail-secure operation
- Reversible for right or left-handed doors
- Durable stainless-steel faceplate
- Miniature lock body for easier installation
- Corrosion-resistant case and moving parts
- Complete mounting hardware included
- Screw terminals for ease of wiring
- Operating voltage: 8~16VAC/12VDC
- 1,000-lb (453kg) Jaw strength
- Tested to 500,000 cycles
- Current draw: 750mA@12VDC
- Keeper depth: 21/32" (16.8mm)
- Latch depth: 3/4" (19mm)
- Strike depth: 11/2" (38mm)
- ANSI Faceplate size: 47/8"x11/4"x1/8" (124x32x3.2 mm)
Other Information
Seco-Larm orders require a $300 combined minimum. Orders under $300 can be fulfilled with additional fees. Please contact us about possible orders under this amount.
Reversible Electric Door Strike w horizontal adjustment for wood & metal doors, fail secure
- 1/4" Horizontal keeper adjustment compensates for installation difficulties such as warped doors, different-sized latch bolts, etc.
- Unique design accommodates both wood and metal doors
- Fail-secure operation
- Reversible for right or left-handed doors
- Durable stainless-steel faceplate
- Miniature lock body for easier installation
- Corrosion-resistant case and moving parts
- Complete mounting hardware included
- Screw terminals for ease of wiring
- Operating voltage: 8~16VAC/12VDC
- 1,000-lb (453kg) Jaw strength
- Tested to 500,000 cycles
- Current draw: 750mA@12VDC
- Keeper depth: 21/32" (16.8mm)
- Latch depth: 3/4" (19mm)
- Strike depth: 11/2" (38mm)
- ANSI Faceplate size: 47/8"x11/4"x1/8" (124x32x3.2 mm)
