Description
-

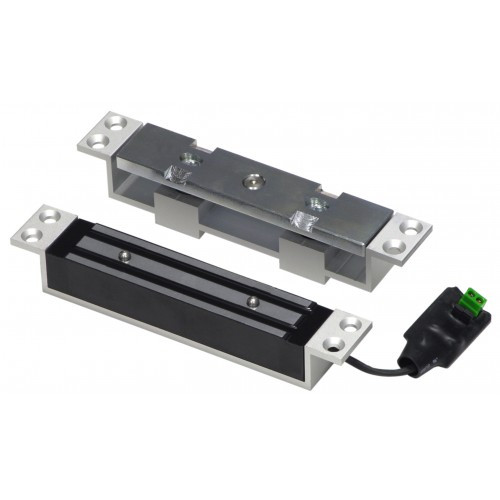

1,500-lb Electromagnetic Shear Lock, UL Listed
Concealed security for remote access and exit control of aluminum and steel doors or gatesConcealed security for remote access and exit control of aluminum and steel doors or gates. Works with sliding, single-action, and double-action (swing through) doors and gates. Plated steel plugs and magnetic bond holds doors securely in place with approximately 1,500 pounds (680 kg) of shear holding force. Surface-Mount Brackets and U-Brackets also available for surface-mount and glass-door-mount applications.
- Smaller size for use with most metal door jambs
- Zinc-plated magnet and armature, aluminum anodized housing
- Works with sliding, single-action, and double-action (swing-through) doors and gates
- Use with an optional digital keypad for keyless high security
- Easily connects to SECO-LARM’s Electronic Keypads
- Spring-loaded locking bolts and magnetic bond holds doors securely in place with approximately 1,500 pounds (680kg) of shear holding force
- Fail-safe operation (unlocks if power is lost)
- Armature plate adjusts to compensate for gaps between door and frame
- Surface-mount bracket (SD-993S-SB) available for surface-mount installations. Please see page 2 for details
- U-Bracket (SD-993S-UB) available for glass-door-mount installations (SD-993S-SB also required)
