Product Overview
DESCRIPTION

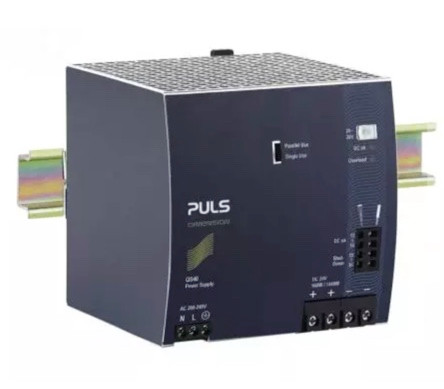

Power Supply, 960W, 200-240VAC 1PH, 24-28VDC, 40-34.3A
FEATURES
- AC 200-240V input
- Width only 125mm, weight only 1.8kg
- 94.6% Full load and excellent partial load efficiencies
- 50% BonusPower, 1440W for up to 4s
- 110A High peak current for 10ms for easy fuse Tripping
- Safe HiccupPLUS overload mode
- Active power factor correction (PFC)
- Negligibly low input inrush current
- Full power between -25°C and +60°C
- Current sharing feature for parallel use
- Internal data logging for troubleshooting included.
- DC-OK relay contact
- Shut-down input
RESOURCES
Other Information
PULS orders require a $400 combined order minimum. This item is fulfilled by a 3rd Party and is subject to availability and possible order minimums. PULS orders are Non-Cancelable/Non-Returnable.
