Product Overview
DESCRIPTION

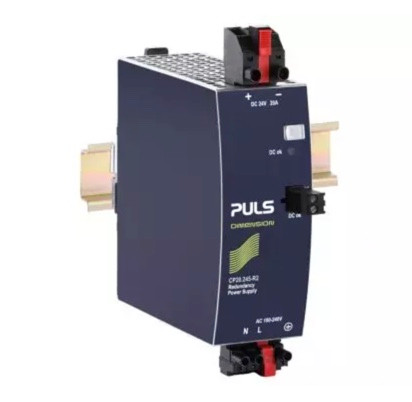

Redundancy Power Supply, 480W, 100-240VAC 1PH, 24VDC, 20A with Plug Connectors & Marine Approval
FEATURES
- AC 100-240V Wide-range input
- Width only 48mm
- Marine approvals, EMC Class B (bridge & deck)
- Built-in decoupling mosfet for 1+1 and n+1 redundancy
- Efficiency up to 95.2%
- 20% Output power reserves
- Safe HiccupPLUS overload mode
- Easy fuse breaking – 3 times nominal current for 12ms
- Active power factor correction (PFC)
- Full power between -40°C and +60°C
- DC-OK relay contact
- Current sharing feature included
RESOURCES
Other Information
PULS orders require a $400 combined order minimum. This item is fulfilled by a 3rd Party and is subject to availability and possible order minimums. PULS orders are Non-Cancelable/Non-Returnable.
