Description
DESCRIPTION

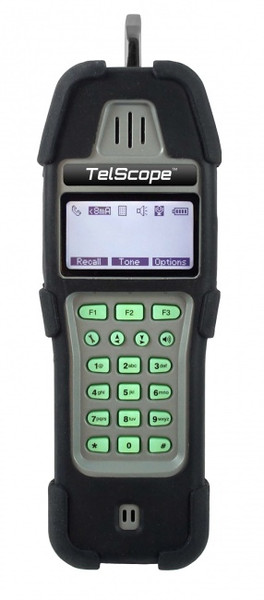

The TelScope is the first true 21st century telecommunication line analyzer setting a new standard for POTS butt sets. It is a field instrument that delivers more information of online conditions & status than any other test set on the market, anywhere in the world!!
Large backlit display for low light environments
Glow-in-the-dark keypad
Advanced data detection & identification
100% Data Safe
Rugged weatherproof case, IP54 Standard
Drop Proof (Tested at 20ft)
Functions
- 60-in cord set with Alligator Clips, Angled Bed-of-Nails, Piercing Point and No-Fault RJ12 8P8C connector
- Speaker with fine volume adjustment
- Noise cancelling microphone
- Microphone mute with toggle on/off locking feature
- Soft key menu system
- Metal spring-loaded belt clip
- Cushion boot for extra protection
- Off-hook current and polarity
- On-hook voltage and polarity
- On-hook and call waiting Caller ID info
- Amplified Line Monitor for volume levels comparable to
- 8 number Stored memory with Alpha/Numeric tags
- Fuel Gauge Battery condition
- Continuous Polarity Indication
- Caller ID/Call Waiting and Caller ID error detection
- Tone and Pulse dialing
- Configurable Auto Off in all modes
- Detects and identifies DSL and T1 lines
- Last number dialed, redialed or received
- Multilingual (English, French, Spanish)
- Backlight 0-100% adjustable with on/off option
APPLICATION
- ***TLA300-1 is the replacement for T62 Recon Test Set
