Product Overview

Overview & Features

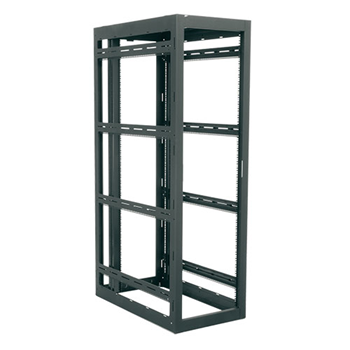

The WMRK series was designed specifically for mounting deep equipment in a raised-floor standard 24” wide enclosure. Comes standard with cage nut mounting rails and perforated doors and tops to meet server manufacturer warranty specifications.Choose a WMRK when mounting deep servers or similar equipment is required, and for easy installations in raised-floor environments. Pre-configured models are also available.

Fully welded construction for strength and stability
24” overall width optimized for use on raised floors
Racks gang together when fully loaded
Numbered rackspace increments speed equipment mounting
Includes two pair of adjustable cage nut rackrail and one pair of z-rail sidemount adaptors configured to accept servers and slide kits from all leading manufacturers
Includes leveling feet and 100 qty of 6mm cage nuts and hardware
Includes perforated front and rear doors to meet most server warranty specifications
Includes vented top, 20A 10 outlet power strip, and side panels

Dimensions

Depth: 36 in (91.44 cm)

Height: 48.56 in (123.34 cm)

Panel Width: 19 in (48.26 cm)

Primary Package Weight: 135 lbs (61.23 kg)

Rack Units: 24 RU

UL Load Capacity: 2,500 lbs (1,133.98 kg)

Usable Depth: 33.5 in (85.09 cm)

Usable Height: 42 in (106.68 cm)

Width: 23.94 in (60.81 cm)
