Description
Overview & Features

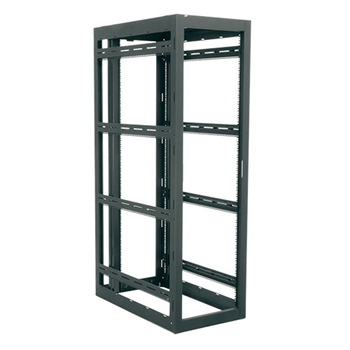

The WMRK series was designed specifically for mounting deep equipment in a raised-floor standard 24” wide enclosure. Comes standard with cage nut mounting rails to meet server manufacturer warranty specifications.Choose a WMRK when mounting deep servers or similar equipment is required, and for easy installations in raised-floor environments. Pre-configured models are also available.
- Fully welded construction for strength and stability
- 24” overall width optimized for use on raised floors
- Racks gang together when fully loaded
- Numbered rackspace increments speed equipment mounting
- Includes two pair of adjustable cage nut rackrail and one pair of z-rail sidemount adaptors configured to accept servers and slide kits from all leading manufacturers
- Includes leveling feet and 100 qty of 6mm cage nuts and hardware
Dimensions
Depth: 36 in (91.44 cm)
Height: 48.56 in (123.34 cm)
Panel Width: 19 in (48.26 cm)
Primary Package Weight: 135 lbs (61.23 kg)
Rack Units: 24 RU
UL Load Capacity: 2,500 lbs (1,133.98 kg)
Usable Depth: 33.5 in (85.09 cm)
Usable Height: 42 in (106.68 cm)
Width: 23.94 in (60.81 cm)
