Product Overview
GENERAL INFO
Finish: Black Powder Coat
UL Standards Tested: 1678
TECHNICAL INFORMATION
Static Load Capacity: 85
UL Load Capacity: 35-85
Material: Steel
DIMENSIONS
Usable Depth: 15
Capacity Weight (US): 85
Depth (US): 15.375
Height (US): 7
Width (US): 19
Rack Units: 4

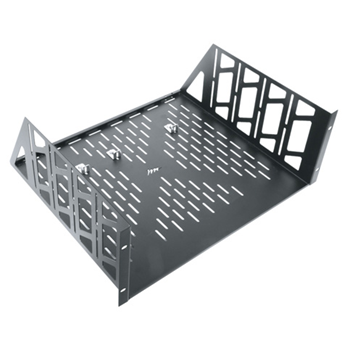

EIA/TIA compliant 19” solid, one-piece 16-gauge steel rackshelf shall be Middle Atlantic Products model # U4V (4=# of rackspaces) and shall have a ventilated bottom and sides. Weight capacity shall be 85 lbs. Rackshelf shall feature durable flat black powder coat finish. Vented U series rackshelf shall be GREENGUARD Indoor Air Quality Certified for Children and Schools. Vented U series rackshelf shall be RoHS EU Directive 2002/95/EC compliant. Vented U series rackshelf shall be manufactured by an ISO 9001 and ISO 14001 registered company. Vented U series rackshelf shall be warrantied to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product.
FEATURES & BENEFITS
Fully ventilated bottom and side areas for maximizing heat dissipation • Includes 3 rear brackets to prevent components from sliding backwards • Allows optional PD-815SC-PBSH (15 Amp, 8 outlet surge protected power strip) to be attached to the rear of the shelf • Allows attachment of optional clamping bars to secure components
- Fully vented bottom and sides for heat dissipation
- Accepts optional clamping bars to secure components
- Accepts mounting of PD-815SC-PBSH power strip
- Welded steel construction, with black powder coat finish
