Product Overview
GENERAL INFO
Finish: Black Powder Coat
TECHNICAL INFORMATION
Static Load Capacity: 35
Material: Steel
DIMENSIONS
Usable Depth: 10.41
Capacity Weight (US): 35
Depth (US): 10.78
Height (US): 1.75
Width (US): 19
Rack Units: 1

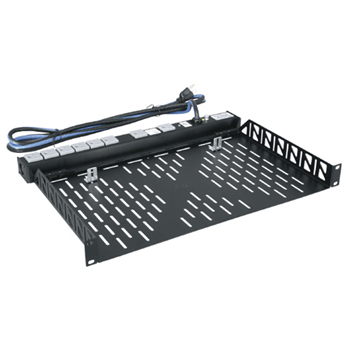

EIA/TIA compliant 19” solid, one-piece 16-gauge steel rack shelf shall be Middle Atlantic Products model # U1V (1=# of rack spaces) and shall have a ventilated bottom and sides. Weight capacity shall be 35 lbs. Rack shelf shall feature durable flat black powder coat finish. Vented U series rack shelf shall be GREEN GUARD Indoor Air Quality Certified for Children and Schools. Vented U series rack shelf shall be RoHS EU Directive 2002/95/EC compliant. Vented U series rack shelf shall be manufactured by an ISO 9001 and ISO 14001 registered company. Vented U series rack shelf shall be warrantied to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product.
FEATURES & BENEFITS
- Fully vented bottom and sides for heat dissipation
- Accepts optional clamping bars to secure components
- Accepts mounting of PD-815SC-PBSH power strip
- Welded steel construction, with black powder coat finis
