Product Overview
DESCRIPTION

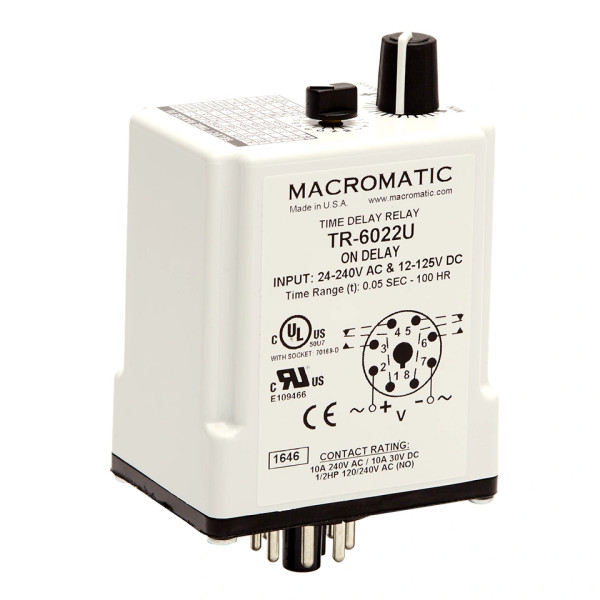

Triggered On Delay, 12-125V DC 24-240VAC, 10 amp DPDT, 50ms-100 Hrs, Plug-in
Upon application of input voltage, the time delay relay is ready to accept a trigger. When the trigger is applied, the time delay (t) begins. At the end of the time delay (t), the output is energized and remains in that condition as long as both the trigger and control voltage remains. If the trigger is removed during the time delay (t), the output remains de-energized & the time delay (t) is reset.
FEATURES
RESOURCES
