DESCRIPTION

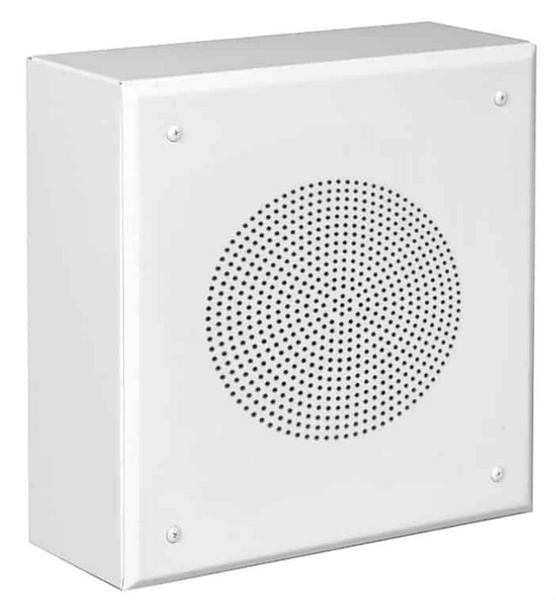

Surface-mount speaker model DSQ-805-72 is for background music and paging in classrooms, offices, retail locations or anywhere an attractive surface-mount speaker is required. Includes driver with dual voltage (25V/70V) transformer, enclosure and grille. Ships ready to install.
FEATURES
- Driver (805A): 8 in. 12W dual cone driver with 5 oz. magnet
- Transformer (TLM-572): 25V/70V transformer. Taps at .25, .5, 1, 2, 5W
- Enclosure: Steel. 11.5 in. x 11.5 in. x 4 in. White.
- Grille: Steel with beveled edge and circular hole pattern. White.
- Mounting Aids: Universal mounting hole pattern. Top/bottom knockouts for 500 Series wiremold.
- System: Frequency Response 122Hz–7.4kHz (±6dB) and 65Hz–20kHz (±12dB). Average Sensitivity 95.1dB (1W/1M). Dispersion 110 degrees conical.
