Description
DESCRIPTION

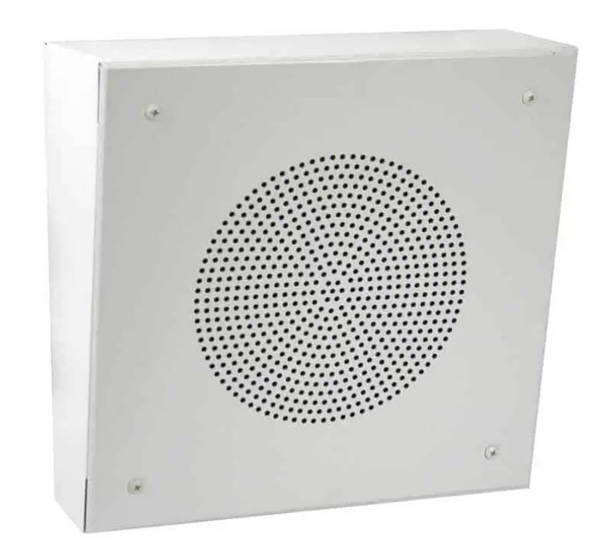

Model DSL-805-72 is an 8-inch 12W dual cone speaker made for background music and paging. It's ideal for classrooms, offices, retail locations — just about anywhere an attractive surface-mount speaker is required. Includes an 8-inch dual cone driver with transformer, enclosure with sloped front and grille. Ships ready to install.
FEATURES
- Driver (805A): 8 in. 12W dual cone driver with 5 oz. magnet
- Transformer (TLM-572): 25V/70V dual voltage transformer. Taps at 0.25, 0.5, 1, 2, 5W.
- Enclosure: Steel enclosure with sloped front. 11.3 in. x 11.5 in x 5.29 in. (3.05 in. at base). White.
- Grille: Steel with beveled edge and circular hole pattern. White.
- Mounting Aids: Universal mounting hole pattern will install to a 4 in. square, 4 in. octagon, 1- or 2-gang box (not included). Top/bottom knockouts for 500 Series wiremold.
- System Specifications: Frequency Response 122Hz–7.4kHz (±6dB), 65Hz–20kHz (±12dB). Average Sensitivity 95.1dB (1W/1M). Dispersion 110 degrees conical.
