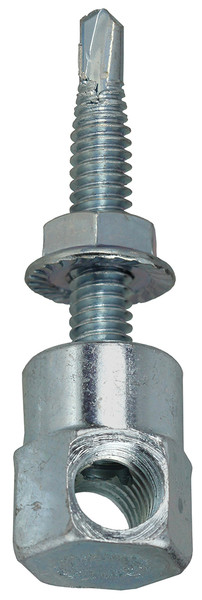

L.H. Dottie SSM38SR 3/8''-16 Metal Drilling Side Mount Rod Hanger

$3.89
SKU:
SSM38SR
Shipping:
Calculated at Checkout
interval quantity:
100
L.H. Dottie SSM38SR 3/8''-16 Metal Drilling Side Mount Rod Hanger

Product Overview

3/8''-16 Metal Drilling Side Mount Rod Hanger

Side Mount Steel Rod Hangers are used in the sides of steel joists and beams to install threaded rod vertically. They feature a self-drilling tip that requires no pre-drilling and can easily be installed with a drill or screw gun. For proper installation and weight load data, reference the technical data sheet.
Add to submittal

Specifications

Physical Characteristics

Anchor Type
Rod Hanger
Nut Type
Retainer
Point Style
#3
Thread Type
UNC
Screw Size
1/4''-20 x 1-1/2''
Rod Size
3/8''
Head Diameter
5/8''
Shank Length
1-1/2''
Thread Pitch/Thread Per Inch
1/4''-20
Material
Carbon Steel
Finish
Zinc Plated
Number of Nuts
1
Mount Style
Side

Packaging Details

Standard Qty
100
Master Qty
500
Price Per
100
Package Length
8.50
Package Width
5.90
Package Height
3.80
Net Weight
0.08
Package Weight
7.70

Performance Data

Applications
Steel Joists, Beams, Purlins
Special Features
Self Drilling Tip, No Pre-Drill Required, One Piece Design, Low Torque to Install
Self Drilling Range
0.188'' to 0.520''

Certifications

RoHS Compliant
Yes

Other Information

Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
