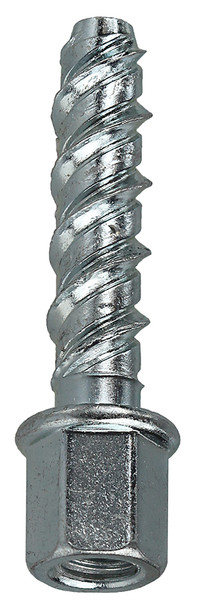

L.H. Dottie SSC38B 3/8''-16 Concrete Bottom Mount Rod Hanger

$2.73
SKU:
SSC38B
Shipping:
Calculated at Checkout
interval quantity:
100

Product Overview

3/8''-16 Concrete Bottom Mount Rod Hanger

Concrete Rod Hangers are manufactured for use in concrete slabs, beams, or concrete over metal where threaded rod is intended to be suspended. These carbon steel fasteners are robust screw anchors with threads that cut deep, creating a self-tapping concrete screw that offers low installation torque. Suitable applications for use are electrical conduit and cable-tray applications, pipe hanging, fire protection, and suspension of HVAC equipment. For proper installation instructions and weight loads, reference the technical data sheet.

Specifications

Physical Characteristics

Anchor Type
Rod Hanger
Thread Type
Concrete
Screw Size
1/4'' x 1-1/4''
Rod Size
3/8''
Head Diameter
1/2''
Shank Length
1-1/2''
Thread Pitch/Thread Per Inch
1/4''-20
Material
Carbon Steel
Finish
Zinc Plated
Mount Style
Bottom

Packaging Details

Standard Qty
100
Master Qty
600
Price Per
100
Package Length
6.10
Package Width
4.70
Package Height
2.90
Net Weight
0.05
Package Weight
4.54

Performance Data

Pre-Drill Size
1/4'' ANSI
Applications
Concrete Slabs, Beams, or Concrete Over Metal
Special Features
Self Tapping, Unique Thread Design, Quick & Easy Installation, Hardened Carbon Steel

Certifications

RoHS Compliant
Yes

Other Information

Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
