Product Overview

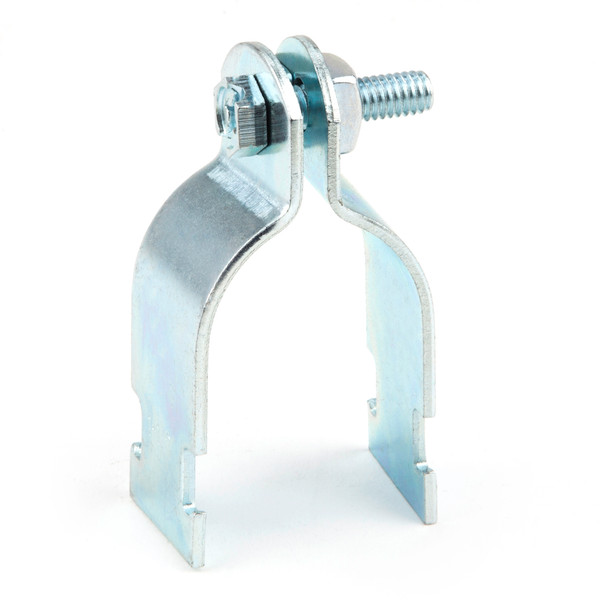

1/2'' Universal Strut Clamp
Universal Strut Clamps are used to secure EMT or rigid conduit to strut channel in overhead or wall mount applications. They come preassembled with a keps nut and are electrogalvanized for superior corrosion resistance.
Specifications
Physical Characteristics
Type
Strut Clamp
Style
Universal
EMT Size (in)
1/2''
Pipe Size (in)
1/2''
Bolt Size
1/4''-20 x 1''
Size
1/2''
Gauge
16
Connection
Clamp On
Material
Carbon Steel
Finish
Electrogalvanized
Packaging Details
Standard Qty
50
Master Qty
50
Price Per
100
Package Length
8.2
Package Width
5.3
Package Height
5.7
Net Weight
0.121
Package Weight
6.05
Performance Data
Maximum Load (lb)
400 lbs
Applications
Secures EMT or Rigid Conduit to Strut Channel
Special Features
Designed For EMT/Pipe, Suitable For Use With 12 or 14 Gauge Metal Framing Channel
For Use With
Rigid/EMT Conduit
Certifications
RoHS Compliant
No
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
