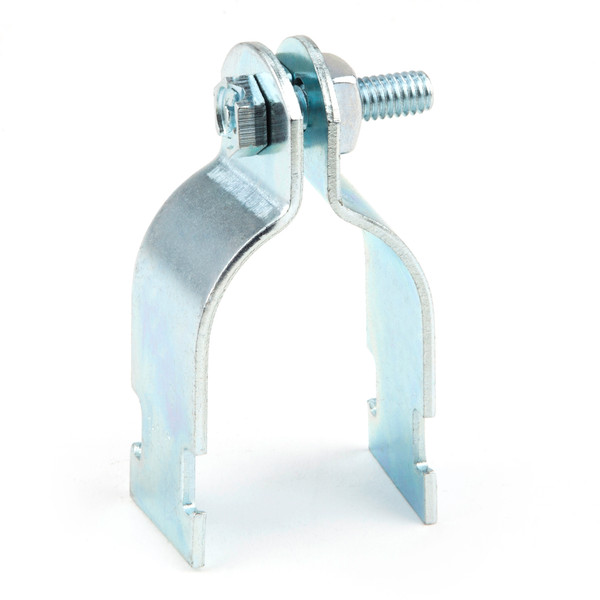

L.H. Dottie SC125U 1-1/4'' Universal Strut Clamp

$2.05
SKU:
SC125U
Shipping:
Calculated at Checkout
interval quantity:
50
L.H. Dottie SC125U 1-1/4'' Universal Strut Clamp

Product Overview

1-1/4'' Universal Strut Clamp

Universal Strut Clamps are used to secure EMT or rigid conduit to strut channel in overhead or wall mount applications. They come preassembled with a keps nut and are electrogalvanized for superior corrosion resistance.
Add to submittal

Specifications

Physical Characteristics

Type
Strut Clamp
Style
Universal
EMT Size (in)
1-1/4''
Pipe Size (in)
1-1/4''
Bolt Size
1/4''-20 x 1''
Size
1-1/4''
Gauge
14
Connection
Clamp On
Material
Carbon Steel
Finish
Electrogalvanized

Packaging Details

Standard Qty
50
Master Qty
50
Price Per
100
Package Length
8.3
Package Width
5.3
Package Height
5.6
Net Weight
0.192
Package Weight
9.6

Performance Data

Maximum Load (lb)
600 lbs
Applications
Secures EMT or Rigid Conduit to Strut Channel
Special Features
Designed For EMT/Pipe, Suitable For Use With 12 or 14 Gauge Metal Framing Channel
For Use With
Rigid/EMT Conduit

Certifications

RoHS Compliant
No

Resources & Downloads

Product Specification Sheet

Other Information

Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
