Product Overview

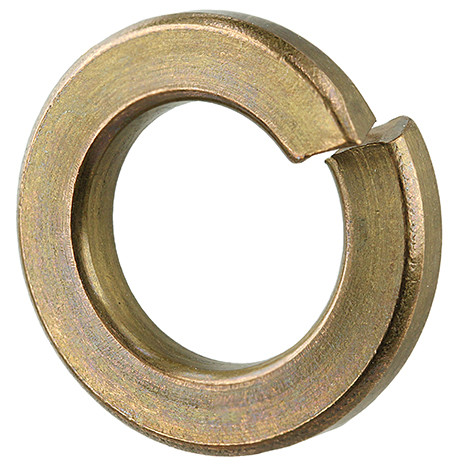

5/8'' Silicon Bronze Lock Washer
Silicon Bronze Split Lock Washers are manufactured with a trapezoidal cross section that deflects under load and can be used with or without a Silicon Bronze Flat Washer. They provide marginal resistance to vibration loosening and are ideal in applications where fasteners have a tendency to rotate or lose friction. Silicon Bronze Split Lock Washers are the ideal choice when working in highly corrosive environments or marine applications. They are covered by ASME B18.21.1.
Specifications
Physical Characteristics
Type
Lock Washer
Size
5/8''
Diameter
5/8''
Inside Diameter
0.641'' - 0.628''
Outside Diameter
1.073''
Fits Bolt Sizes
5/8''
Material
Silicon Bronze
Packaging Details
Standard Qty
100
Master Qty
1000
Price Per
100
Package Length
5.60
Package Width
4.10
Package Height
2.60
Package Weight
2.85
Net Weight
0.03
Performance Data
Rockwell Hardness
HRB 90 min.
Special Features
Tolerates Extreme Temperatures, Harder than Brass, Corrosion Resistance
Applications
General Purpose
Certifications
RoHS Compliant
Yes
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
