Product Overview

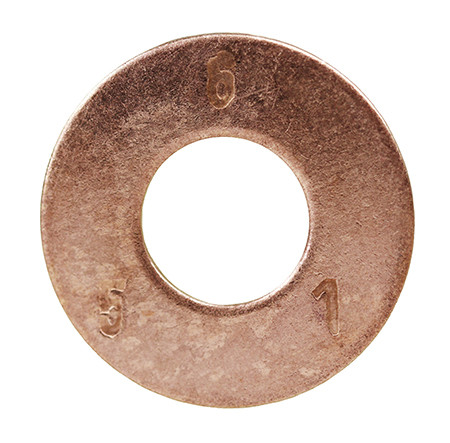

#8 Silicon Bronze Flat Washer
Silicon Bronze Flat Washers are used to increase the surface area of fasteners, in order to evenly distribute the force applied when tightening them to a surface. They are also used to prevent loosening due to vibration, to stop the bolt or screw from pulling through, and act as spacers. Silicon bronze will not corrode, and has better strength and temperature resistance than brass, making it the superior choice for marine applications. They are intended to be used with silicon bronze nuts and bolts in non-critical applications and are manufactured to the ASME B18.21.1 standard.
Specifications
Physical Characteristics
Type
Flat Washer
Size
#8
Inside Diameter
0.196'' - 0.183''
Outside Diameter
0.508'' - 0.495''
Thickness (in)
0.045'' - 0.036''
Material
Silicon Bronze
Packaging Details
Standard Qty
100
Sleeve Qty
500
Master Qty
4000
Price Per
100
Package Length
1.54
Package Width
2.92
Package Height
3.66
Package Weight
0.12
Net Weight
0.00
Performance Data
Rockwell Hardness
HRB 90 min.
Special Features
Harder than Brass, Tolerates Extreme Temperatures, Excellent Corrosion Resistance, Acts as Spacer, Vibration Resistance
Applications
General Purpose
Certifications
RoHS Compliant
Yes
Meets/Exceeds
ASME B18.21.1
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
