Product Overview

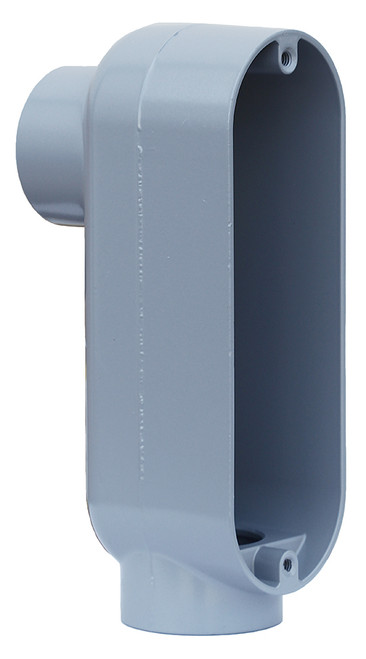

2'' LB Threaded Conduit Body w/ Cover & Gasket
LB Style Conduit Bodies are designed to allow for easy access to the interior of a conduit system for wire pulling and splicing. They are compatible with both IMC and Rigid Conduit and feature a removable cover and gasket for maintenance work.
Specifications
Physical Characteristics
Type
Conduit Body with Cover & Gasket
Conduit Body Type
LB
Thread Type
NPT
Gasket
Nitrile
Cable Size
Up to three #3/0 AWG
Size
2''
Cubic Capacity
71-1/4''
Form
Series 5
Connection
Threaded
Material
Die Cast Aluminum
Finish
Powder Coated
Cable Type
THHN
Color
Gray
Packaging Details
Includes
Cover & Gasket
Standard Qty
1
Master Qty
5
Price Per
100
Package Length
10.6299
Package Width
6.063
Package Height
4.8031
Net Weight
1.945
Package Weight
1.945
Performance Data
Applications
Provides Easy Access to the Interior of a Conduit System
For Use With
Rigid Conduit
Environmental Conditions
Wet Locations
Certifications
RoHS Compliant
Yes
Industry Standard
UL & CSA Listed
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
