Product Overview

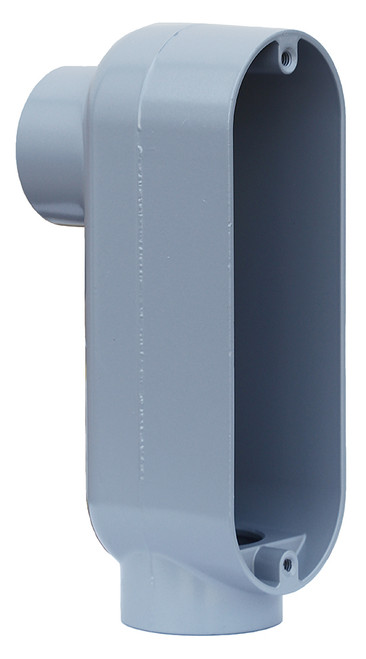

1'' LB Threaded Conduit Body w/ Cover & Gasket
LB Style Conduit Bodies are designed to allow for easy access to the interior of a conduit system for wire pulling and splicing. They are compatible with both IMC and Rigid Conduit and feature a removable cover and gasket for maintenance work.
Specifications
Physical Characteristics
Type
Conduit Body with Cover & Gasket
Conduit Body Type
LB
Thread Type
NPT
Gasket
Nitrile
Cable Size
Up to three #4 AWG
Size
1''
Cubic Capacity
12-1/4''
Form
Series 5
Connection
Threaded
Material
Die Cast Aluminum
Finish
Powder Coated
Cable Type
THHN
Color
Gray
Packaging Details
Includes
Cover & Gasket
Standard Qty
5
Master Qty
25
Price Per
100
Package Length
10.6
Package Width
6.1
Package Height
4.8
Net Weight
0.62
Package Weight
3.1
Performance Data
Applications
Provides Easy Access to the Interior of a Conduit System
For Use With
Rigid Conduit
Environmental Conditions
Wet Locations
Certifications
RoHS Compliant
Yes
Industry Standard
UL & CSA Listed
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
