Product Overview

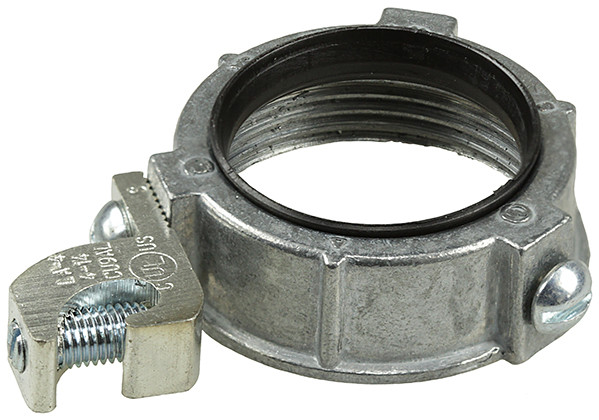

1/2'' Insulated Ground Bushing w/ Lay In Lug
Insulated Ground Bushings are used to fasten and ground threaded rigid conduit or IMC to an enclosure. They feature a Zinc/Aluminum body and a 90° Copper/Aluminum dual rated lay in lug that is intended for grounding jumper to neutral bus bar.
Specifications
Physical Characteristics
Type
Insulated Ground Bushing
Style
Lay In Lug
Size
1/2''
Connection
Threaded
Material
Zinc/Aluminum
Packaging Details
Standard Qty
25
Master Qty
250
Price Per
100
Package Length
3.8
Package Width
5.3
Package Height
3.7
Net Weight
0.0758
Package Weight
1.895
Performance Data
Conductor Range
14 SOL to 4 STR
Insulation
Nylon Insulator
Applications
Terminates Threaded Rigid Conduit/IMC To an Enclosure
Special Features
194°F Copper/Aluminum Dual Rated Lay In Lug, 302°F Rated Nylon Insulator
For Use With
Rigid/IMC Conduit
Certifications
RoHS Compliant
Yes
Industry Standard
UL Listed
Resources & Downloads
