Product Overview

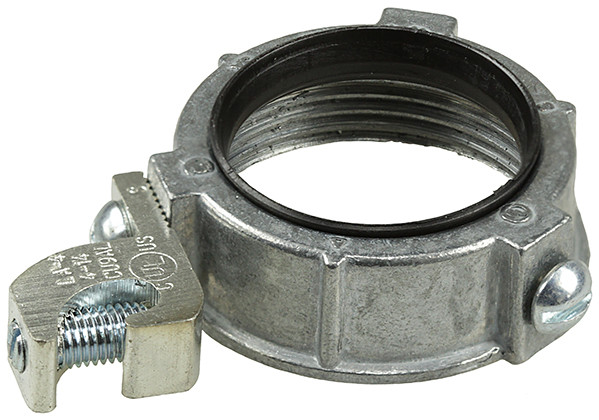

2-1/2'' Insulated Ground Bushing w/ Lay In Lug
Insulated Ground Bushings are used to fasten and ground threaded rigid conduit or IMC to an enclosure. They feature a Zinc/Aluminum body and a 90° Copper/Aluminum dual rated lay in lug that is intended for grounding jumper to neutral bus bar.
Specifications
Physical Characteristics
Type
Insulated Ground Bushing
Style
Lay In Lug
Size
2-1/2''
Connection
Threaded
Material
Zinc/Aluminum
Packaging Details
Standard Qty
5
Master Qty
50
Price Per
100
Package Length
3.8
Package Width
5.3
Package Height
6.3
Net Weight
0.411
Package Weight
2.055
Performance Data
Conductor Range
14 SOL to 1/0 STR
Insulation
Nylon Insulator
Applications
Terminates Threaded Rigid Conduit/IMC To an Enclosure
Special Features
194°F Copper/Aluminum Dual Rated Lay In Lug, 302°F Rated Nylon Insulator
For Use With
Rigid/IMC Conduit
Certifications
RoHS Compliant
Yes
Industry Standard
UL Listed
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
