Description
DESCRIPTION

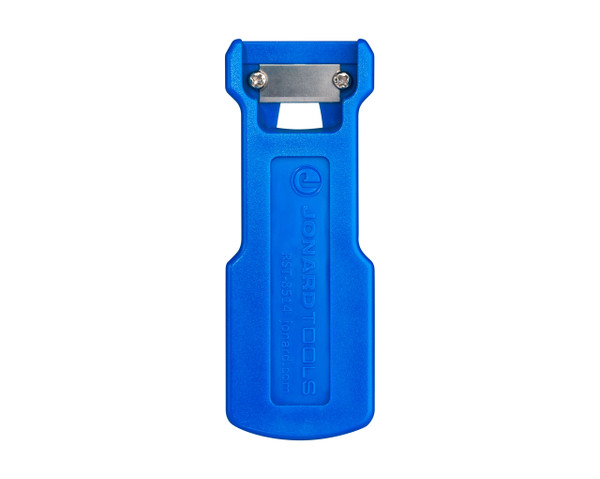

The RST-8514 Riser Slitting Tool shaves a lengthwise access window into round FTTH riser cable and microduct from 8.5 to 14 mm (0.33" to 0.55") in diameter, so you can reach the fibers inside for mid-span or end-of-cable access. The high carbon steel blade is fixed at the factory, so there is nothing to adjust between cable sizes and the window is cut without damaging the fiber inside. Seat the cable in the tool, then draw the tool along the cable to shave the window to the length you need. The narrow body fits between closely spaced and surface mounted cables.
FEATURES
- Shaves an access window in round FTTH riser cable and microduct 8.5 to 14 mm (0.33" to 0.55") in diameter without damaging the fiber inside.
- Factory-fixed high carbon steel blade needs no adjustment between cable diameters.
- Lightweight, narrow body reaches closely spaced and surface mounted cables.
- Made for mid-span or end-of-cable slitting.
- Replacement blades are sold separately as RST-RB25 (pack of 25), and the tool is backed by a lifetime warranty.
SPECIFICATIONS
- Cut Type: Slit
- Cable Type: FTTH Riser, microduct
- Cable Diameter: 8.5 mm-14 mm (0.33"-0.55")
- Blade: High carbon steel, factory-fixed
- Replacement Blades: RST-RB25 (pack of 25)
- Dimensions: 4" x 1.5" x 0.625" (101.6 mm x 38.1 mm x 15.8 mm)
- Weight: 0.08 lb (36.32 g)
- UPC #: 811490017528
