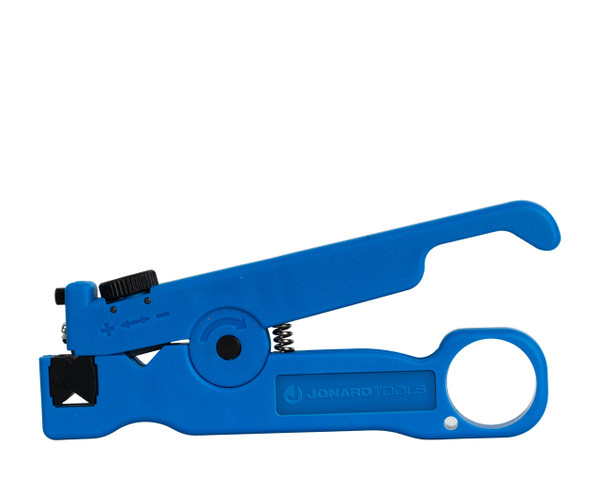

Jonard Tools CSR-1575 Cable Slit & Ring Tool

$32.95
SKU:
CSR-1575
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.


Manufacturer Information

Jonard Tools orders require a $350.00 combined minimum. Please contact us about possible orders under this amount.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

DESCRIPTION

The Jonard Tools CSR-1575 cable slit and ring tool is designed for slitting and ringing fiber optic cables, buffer tubes, and jackets. The reversible V block grips smaller cables, while a separate slot with adjustable blade depth handles larger fiber optic cables and network cables up to CAT 8. This cable slit and ring tool features the following:

FEATURES

  • Reversible V block holds smaller cables from 1.2 mm to 3 mm in diameter
  • Separate slot with adjustable blade depth accommodates larger fiber optic cables from 3 mm to 7.5 mm in diameter, plus network cables up to CAT 8

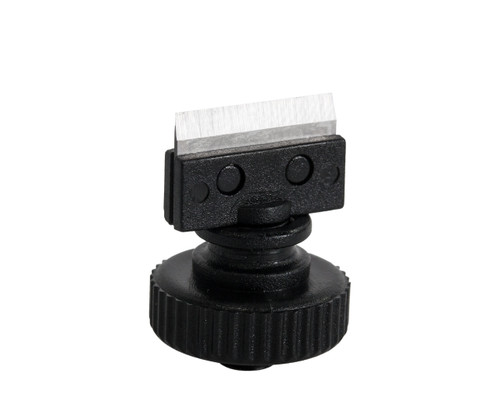

  • Blade depth is easily adjustable for different cable sizes
  • Spring-loaded design for easy operation
  • Lifetime Warranty

SPECIFICATIONS

  • Cut Type: Ring, Slit
  • Cable Type: Fiber optic jacket, buffer tubes, CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6A, CAT7, CAT7A, CAT 8
  • Cable Diameter: V block: 1.2 mm to 3 mm (0.05" to 0.12") | Adjustable slot: 3 mm to 7.5 mm (0.12" to 0.3")
  • Wire Guage: 22 AWG to 26 AWG (23 AWG solid, 26 AWG stranded)
  • Dimensions: 4 in x 2 in x 0 in (10.16 cm x 5.08 cm x 0 cm)
  • Weight: 0.01 lb (4.54 g)
  • UPC #: 811490016552

DOCUMENTATION
