Description
DESCRIPTION

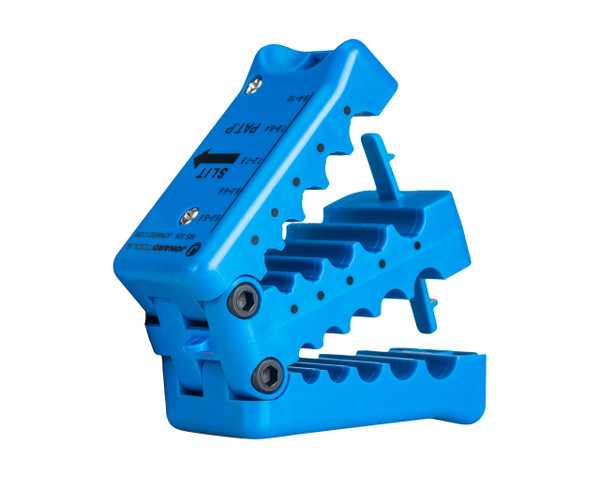

The Jonard MS-326 Mid Span Slit & Ring Tool removes the jacket from thin-walled fiber cables used in microducts, from 5 mm to 10 mm in diameter. One side of the tool rings the jacket with a radial cut and the other side slits it lengthwise, so you can get mid-span access with a single tool. It has five slitting grooves and five ringing grooves, sized 5.0-5.6, 6.0-6.6, 7.2-7.8, 7.8-8.4 and 9.4-10 mm, and an indicator line on top shows where the blade sits. It was designed for Corning MiniXtend® binderless FastAccess®, HD MiniXtend® and similar cables. It weighs under 2.5 oz, has a tethering hole for work in tight spaces, and is backed by a lifetime warranty.
FEATURES
- Five slitting and five ringing grooves from 5 mm to 10 mm.
- Made for thin-walled microduct cables such as Corning MiniXtend® binderless FastAccess® and HD MiniXtend®.
- Ring side makes radial cuts; slit side makes lengthwise cuts.
- Indicator line shows the blade position; under 2.5 oz with a tethering hole.
- Lifetime warranty.
SPECIFICATIONS
- Cut Type: Slit, Ring
- Number of Slitting Grooves: 5
- Number of Ringing Grooves: 5
- Cable Type: Thin-walled Jackets
- Cable Diameter: 5 mm-10 mm
- Dimensions: 3.14 in x 1.53 in x 2.07 in (7.96 cm x 3.87 cm x 5.26 cm)
- Weight: 0.22 lb (98.064 g)
- UPC #: 811490019263
