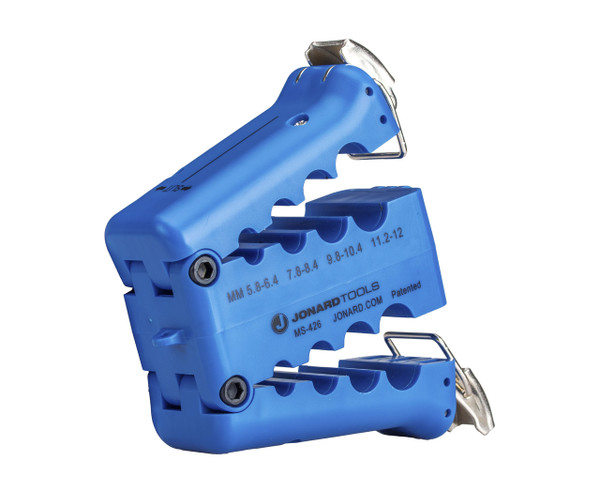

The Jonard MS-426 Mid Span Slit & Ring Tool opens thick-walled fiber cable jackets from 5.8 mm to 12 mm in diameter, with walls up to 2.0 mm thick. It was designed for Prysmian ESMF Optical Mini FlexTube® cables and also works on Corning equivalents and similar cables. Like the MS-6 and MS-26 it's based on, it slits, and it adds a ring side: one side makes radial cuts and the other slits lengthwise. The patented tool has four slitting grooves and four ringing grooves, sized 5.8-6.4, 7.8-8.4, 9.8-10.4 and 11.2-12 mm, and an indicator line on top shows where the blade sits. It weighs under 8 oz, has a tethering hole, and is backed by a lifetime warranty. The MS-426RB replacement blade set is available.
FEATURES
- Four slitting and four ringing grooves from 5.8 mm to 12 mm.
- Made for Prysmian ESMF Optical Mini FlexTube® and similar thick-walled cables, up to 2.0 mm wall.
- Ring side makes radial cuts; slit side makes lengthwise cuts.
- Indicator line shows the blade position; under 8 oz with a tethering hole.
- Patented design with a lifetime warranty; replacement blade set MS-426RB.
SPECIFICATIONS
- Cut Type: Slit, Ring
- Number of Slitting Grooves: 4
- Number of Ringing Grooves: 4
- Cable Type: Thick-walled Jackets (up to 2.0 mm thick)
- Cable Diameter: 5.8 mm-12 mm
- Dimensions: 3 in x 3 in x 1 in (7.62 cm x 7.62 cm x 2.54 cm)
- Weight: 0.46 lb (208.84 g)
- UPC #: 811490019973
