Description
DESCRIPTION

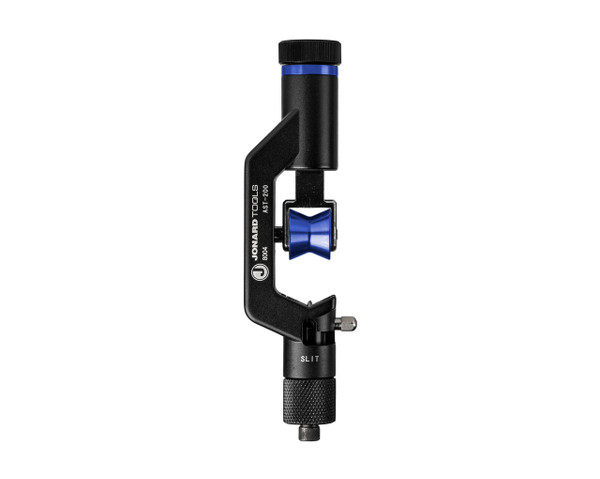

The Jonard AST-200 CableSaber gives you mid-span access to armored and thick-jacketed cable from 4 mm to 28.6 mm (0.157" to 1.125") in diameter. The blade turns to sit lengthwise for slitting or crosswise for ringing, and a thumb screw sets the depth by hand, up to 5.5 mm (0.216"). The aluminum shaft keeps the tool steady so the cut doesn't wander into a spiral, and the shaft housing doubles as a handle for more leverage. The blade is MIM-4680 nickel-molybdenum low-alloy steel, heat-treated to 55+ HRC to hold up on tough jackets, and the body is anodized aluminum and steel. For spiral cuts and cable up to 30 mm, see the AST-210 CableSaber+. It's backed by a lifetime warranty.
FEATURES
- Slits and rings armored or thick-jacketed cable from 4 mm to 28.6 mm.
- Thumb screw sets blade depth up to 5.5 mm (0.216").
- Blade switches between lengthwise (slit) and crosswise (ring).
- Aluminum shaft keeps cuts straight; shaft housing works as a handle.
- MIM-4680 steel blade heat-treated to 55+ HRC; anodized aluminum and steel body; lifetime warranty.
SPECIFICATIONS
- Cut Type: Slit, Ring
- Cable Type: Armored, Jacket
- Cable Diameter: 4 mm - 28.6 mm (0.157”-1.125”)
- Maximum Blade Depth: 0.216” (0.55 cm)
- Dimensions: 7 in x 2 in x 1 in (17.78 cm x 5.08 cm x 2.54 cm)
- Weight: 0.75 lb (340.5 g)
- UPC #: 811490018716
