Description
DESCRIPTION

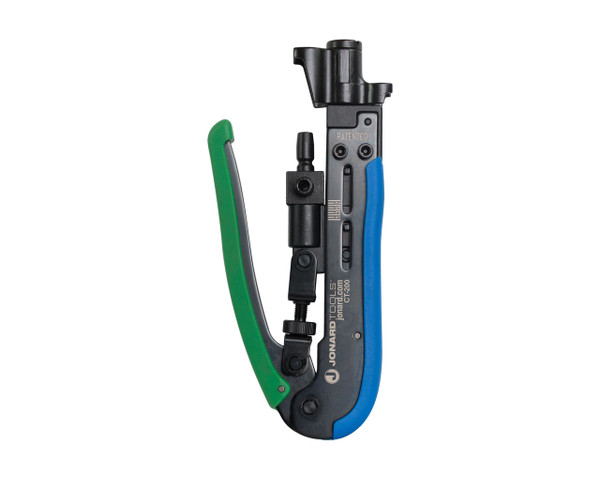

The CT-200 Universal Compression Tool is a patented, adjustable compression tool for installing F, BNC, and RCA connectors on RG59, RG6, RG7, and RG11 coax in CATV and CCTV work. Instead of carrying a separate fixed tool for every connector length, one tool covers short F, long F, BNC, and RCA. To set it up, rotate the dual head to the connector style, pull the plunger and flip it to the side that fits your connector, then set the dial. Push the connector onto the prepared cable, seat it in the crimp holder, and squeeze the handles to compress it.
FEATURES
- Dual head and adjustment dial handle F short, F long, BNC, and RCA connectors on RG59, RG6, RG7, and RG11 cable from a single tool. BNC connectors must be at least 1.5" long.
- Two-sided plunger pulls out and flips to match the connector, and the guide rule on the side of the tool makes each adjustment quick to set.
- High carbon steel construction with a black oxide finish, with a replacement plunger (part 21881) available separately.
- Plastic grips give a comfortable, secure hold through repeated compressions.
- Patented design backed by a lifetime warranty.
SPECIFICATIONS
- Connector Type: F Short, F Long, BNC, RCA
- Cable Types: RG59, RG6, RG7, RG11
- Minimum BNC Connector Length: 1.5"
- Material: High carbon steel, black oxide finish
- Length: 6-3/4" (171 mm)
- Replacement Plunger: 21881
- Compatible PPC Connectors: CMP6, CMP6Q, CMP59Q, CMP11, EX6XL, EX59XL, EX59XLHE, EX6XLW9, EX6LP, EX7, EX7N716, EX11, EX11N716, EX320QR, EX320N716, EX6/59, EX6W8, EX59HE, EX6P, EX11N716PLPLUS, CMPRCA6, EXBNC6, EXBNC9167
- Dimensions: 7 in x 2 in x 1 in (17.78 cm x 5.08 cm x 2.54 cm)
- Weight: 0.95 lb (431.3 g)
- UPC #: 811490012035
