Description

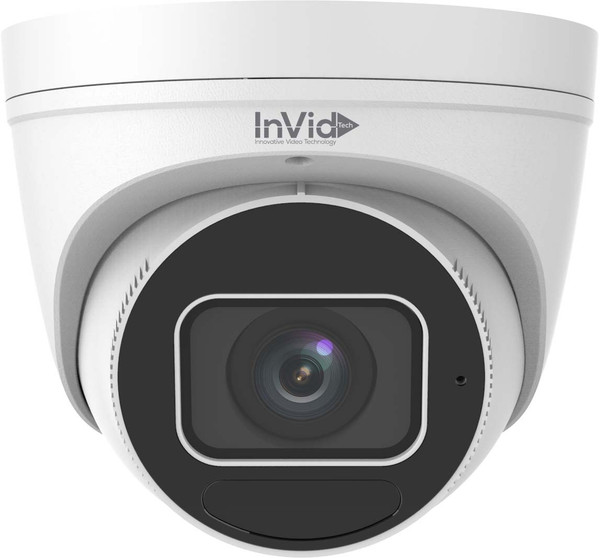

5 Megapixel IP Plug & Play, Outdoor Vandal Turret, 2.7-13.5mm A/F Motorized, 131’ EXIR Range, WDR, Built-in Mic, SD Card Slot, PoE/12VDC
Features
- True AI Human and Vehicle Classification for Line Crossing and Intrusion Detection
- 5 Megapixel Resolution
- Motorized Auto-Focus 2.7-13.5mm Lens
- True Day/Night with IR Range up to 131’
- Smart IRs
- Starlight Illumination
- Ultra H.265/H.265/H.264/MJPEG Compression
- 25 FPS Recording and Live
- True WDR 120dB
- Micro SD Slot: Up to 256GB
- Built-in Mic
- IP67 Weatherproof
- IK10 Vandal Resistant
- 12VDC/PoE Operation
- ONVIF
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS)
- Free MAC Client
NDAA Compliant Product-Learn More Here.
Camera | VIS-P5TXIRA27135NH |
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS |
| Lens | 2.7 13.5mm, AF automatic focusing and motorized zoom lens |
| DORI Distance | Lens (mm) Detect (ft) Observe (ft) Recognize (ft) Identify (ft) |
| 2.7 199.5(60.8m) 79.7(24.3m) 40(12.2m) 20(6.1m) | |
| 13.5 996.7(303.8m) 398.6(121.5m) 199.5(60.8m) 99.7(30.4m) | |
| Angle of View (H) | 106.25° 30.42° |
| Angle of View (V) | 56.36° 17.22° |
| Angle of View (O) | 110.34°34.18° |
| Shutter | Auto/Manual, 1 1/100000s |
| Adjustment angle | Pan: 0°360° Tilt: 0° 75° Rotate: 0°360° |
| Minimum Illumination | Colour: 0.002Lux (F1.35, AGC ON) 0Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >56dB |
| IR Range | Up to 131ft (40m) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | 120dB |
Video |
|
| Video Compression | Ultra 265,H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile |
| Frame Rate | Main Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream: D1 (720*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps |
| Video Bit Rate | 128 Kbps16 Mbps |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
Image |
|
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/90°Clockwise/90°Anti-clockwise |
| Dewarping | Supported |
| HLC | Supported |
| BLC | Supported |
Audio |
|
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
Storage |
|
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR |
Smart |
|
| Behavior Detection | Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection ;Motion detection, Tampering alarm, Audio Detection |
Network |
|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | InVid Vision (Mobile App) |
| Vision Tools (IP Utility) | |
| InVid CMS | |
| Web Browser | Plug-in required live view: IE9, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0, Firefox 58.0, Edge 16, Safari 11 | |
Interface |
|
| Built-in Mic | Supported |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
Certifications |
|
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
General |
|
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 8.16W | |
| Dimensions (Ø x H) | Ø5.1” x 4.3” (Φ129 x 110mm) |
| Net Weight | 1.48lb (0.67kg) |
| Material | Metal |
| Working Environment | -22°F 140°F (-30°C 60°C), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -22°F 140°F (-30°C 60°C), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6KV |
| Ingress Protection | IP67 |
| vandal resistant | IK10 |
| Reset Button | Supported |
