Description

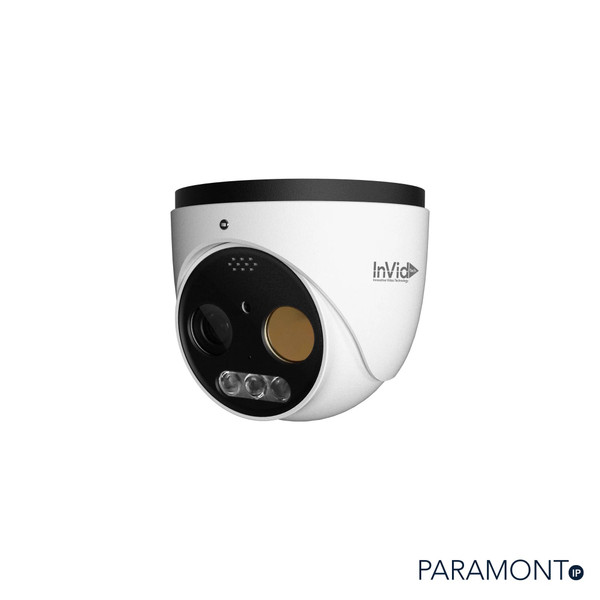

5 Megapixel IP Plug & Play, Outdoor Optical/Thermal Dual Sensor Turret Camera with Dual Image Fusion, Fixed Lens, IR Range up to 98’, WDR, Built-in Mic + Speaker, SD Card Slot, 12VDC/PoE
Features
- Optical/Thermal: True AI Human & Vehicle Classification for Line Crossing, Intrusion Detection, & Other AI Features
- Thermal: Fire Detection & Temperature Measurement with Exception Alarms
- Supports Native Chrome/Edge Use
- 5 Megapixel Resolution
- Fixed Optical Lens 4mm, Fixed Thermal Lens 3.2mm
- True Day/Night with IR Range up to 98’
- 30 FPS Recording and Live
- True WDR
- Micro SD Slot: Up to 256GB
- Audio Input: Built-in Mic
- Audio Output: Built-in Speaker
- IP67 Weather proof
- DC12V/PoE Operation
- ONVIF
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) for PC/MAC
Specifications
- Model: PAR-P5TXIR4TH3
- Thermal Module — Detector Type: 12μm 256×192 Vanadium oxide uncooled focal plane detector
- Thermal Module — Response Waveband: 8μm-14μm
- Thermal Module — NETD: ≤50mK(@25°C, F#=1.0)
- Thermal Module — IRIS Type: Fixed Iris
- Thermal Module — Lens: 3.2mm@F1.1
- Thermal Module — Field of View (H×V): 56°×42.2°
- Thermal Module — Min. Focusing Distance: 0.5 m
- Thermal Module — Color Palettes: Black hot, White hot,iron oxide red, rainbow, etc.
- Thermal Module — DRI Distance Human (0.75m): Detection: 436ft (133m), Recognition: 108ft (33m), Identification: 56ft (17m)
- Thermal Module — DRI Distance Vehicle (2.3m): Detection: 1342ft (409m), Recognition: 335ft (102m), Identification: 167ft (51m)
- Visible Light Module — Image Sensor: 1/ 2.7” CMOS
- Visible Light Module — Image Size: 2592×1944
- Visible Light Module — Electronic Shutter: 1/3 s ~ 1 / 100000 s
- Visible Light Module — Iris Type: Fixed Iris
- Visible Light Module — Min. Illumination: 0.02 lux@F1.6,AGC ON; 0 lux with IR 0.03 lux@F2.0,AGC ON; 0 lux with IR
- Visible Light Module — Lens: 4mm@F1.6
- Visible Light Module — Field of View(H×V): 81°×56.7°
- Visible Light Module — DORI Distance: Detection: 236ft (72m), Observation: 95ft (29m), Recognition: 47ft (14m), Identification: 24ft (7m)
- Visible Light Module — Wide Dynamic Range: 120dB
- Visible Light Module — BLC: Yes
- Visible Light Module — HLC: Yes
- Visible Light Module — Defog: Yes
- Visible Light Module — Digital NR: 2D/3D DNR
- Image — Video Compression: H.265 / H.264 / MJPEG
- Image — H.264 Compression Standard: Baseline Profile / Main Profile / High Profile
- Image — Bit Rate Type: VBR/CBR
- Image — Bit Rate: 128Kbps~ 8Mbps
- Image — Resolution: Thermal : 720P ( 1280 × 720 ), D1, CIF, 480 × 240
- Image — Resolution: Optical: 5MP ( 2592 × 1944 ), 4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ),1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240
- Image — Main Stream: Optical: 60Hz: 5MP/4MP/2K/3MP/1080P/720P (1~30fps); 50Hz: 5MP/4MP/2K/3MP/1080P/720P (1~25fps)
- Image — Main Stream: Thermal : 256 × 192 (the resolution of output image is 720P/D1/CIF/480×240) (1~25fps)
- Image — Sub Stream: Optical: 60Hz: 720P/D1/CIF (1~30fps); 50Hz: 720P/D1/CIF (1~25fps)
- Image — Third Stream: Optical: 60Hz: D1/CIF/480×240(1~30fps); 50Hz: D1/CIF/480×240(1~25fps)
- Image — Dual Image Fusion: Yes
- Image — Temperature Overlay: Temperature can be overlaid on video stream
- Image — Image Settings: ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser
- Image — Audio Compression: G711A/U
- Image — ROI: 8 regions; each ROI to be configured separately
- Interfaces — Network: RJ 45
- Interfaces — Video Output: No
- Interfaces — Audio: 1CH 3.5mm MIC/LIN in audio input; 1CH built-in MIC; 1CH built-in speaker
- Interfaces — Storage: Built-in micro SD card slot; up to 256GB
- Interfaces — Reset: Yes
- Interfaces — RS 485: No
- Interfaces — Alarm: 1CH alarm input; 1CH alarm output
- Functions — Temperature Range: -4°F ~ 302°F (-20°C~150°C)
- Functions — Temperature Accuracy: ±8°C or ± 8%
- Functions — Temperature alarm: Over temperature alarm, low temperature alarm
- Functions — Temperature alarm: 10 rules in total (Point: up to 10; Line: 2, recommended; Area: 2, recommended)
- Functions — Fire Detection: Dynamic fire detection, up to 10 fire points detectable
- Functions — Remote Monitoring: Paramont NVR, Paramont CMS 2.0, Paramont CMS Mobile App
- Functions — Online Connection: Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
- Functions — Network Protocol: UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS
- Functions — Interface Protocol: ONVIF
- Functions — Storage: Network remote storage; micro SD card storage
- Functions — Smart Alarm: Motion detection, SD card error, SD card full, IP address conflict, Cable connection, video exception, audio exception
- Functions — Intelligent Analytics: Optical: region intrusion/entrance/exiting detection/line crossing detection (human/motor vehicle/non-motor vehicle classification), target counting by line/ area(human/motor vehicle/non-motor vehicle classification), face detection, illegal parking detection, loitering detection, abandoned/missing object detection Thermal: fire detection, temperature exception alarm, region intrusion/entrance/ exiting detection/line crossing detection (human/motor vehicle classification) AI function can be enabled simultaneously on thermal and optical channels
- Functions — General Function: Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction
- Functions — Sound & Light Warning: White light flashing alarm and sound alarm supported
- Functions — PoE: Yes , IEEE802.3 af, class0
- Functions — IR Distance: 98’
- Functions — Protection Grade: IP66
- Others — Power Supply: DC12V / PoE
- Others — Power Consumption: < 9W
- Others — Operating Environment: Humidity: less than 95 % (non-condensing) -22°F ~ 140°F (-30 °C ~ 60 °C)
- Others — Certificate: CE, FCC
- Others — Environment Protection: Complies with Directive EU RoHS, WEEE(2012/19/EU), directive 94/62/EC and REACH(EC1907/2006)
- Others — Dimensions: 4.4 x 3.9 in (Ø111.5 × 99.6mm)
- Others — Weight ( net ): Approx. 1.5 lbs (0.68KG)
- Others — Installation: Ceiling mounting; Wall mounting
- Others — Environmental Protection: RoHS2.0, WEEE (2012/19/EU), REACH (EC 1907/2006)
