Description

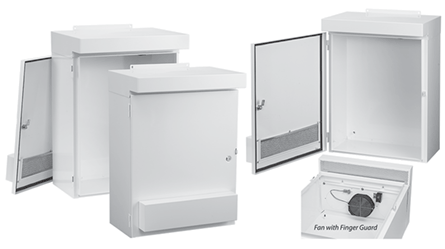

WeatherFlo with Fan Type 3R, 29.00x24.00x12.00, White, Steel
- White polyester powder finish with low solar absorption
- Integrated solar shield top and intake cover
- Gasket and filter
- Adjustable thermostat; 70-140 F (21-60 C)
- Active cooling ventilation system with factory-installed fan and filter (115 VAC)
- Terminal power connection for fan
- Easily accessible and washable metal filter
- Top front hood exhaust and door
- Lift-off hinged door
- Quarter-turn latch
- External mounting brackets
- Collar studs provided to mount the optional panel
- Grounding provision on door and body
- Gasketed door
- Enclosures are finished with paint over plated surfaces
PRODUCT ATTRIBUTES
- Height: 29 in / 737 mm
- Width: 24 in / 610 mm
- Depth: 12 in / 305 mm
- Protection Rating: NEMA Type 3R; IP32
- Material: Mild Steel
- Finish: Galvanized; Powder Coated / Galvanized; Powder Coated
- Color: Signal White
- Color Code: RAL 9003
- Thickness: 14 ga / 1.9 mm
- Panel Size: 21.00 x 21.00 in / 533 x 533 mm
- Panel: A24P24
- Mounting Holes: 29.94 x 13.00 in / 760 x 330 mm
- Drive HorsePower: 3 HP
- Weight: 96 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
WeatherFlo Enclosures feature a forced-air ventilation system for cooling drives or other high-heat producing equipment in outdoor applications.
Purchase panels separately.
WF75LP and WF100LP are constructed of aluminum .100 inch (2.5mm) thick.
BULLETIN NUMBER
A3RD
INDUSTRY STANDARDS
UL 508A Listed; Type 3R; File Number E61997
cUL Listed per CSA C22.2 No 94; Type 3R; File Number E61997
NEMA/EEMAC Type 3R
IEC 60529, IP32
