Description

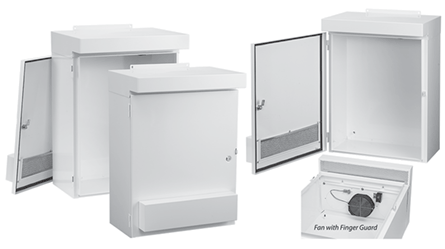

WeatherFlo with Fan Type 3R, 67.00x36.00x16.00, White, Aluminum
- White polyester powder finish with low solar absorption
- Integrated solar shield top and intake cover
- Gasket and filter
- Adjustable thermostat; 70-140 F (21-60 C)
- Active cooling ventilation system with factory-installed fan and filter (115 VAC)
- Terminal power connection for fan
- Easily accessible and washable metal filter
- Top front hood exhaust and door
- Lift-off hinged door
- Quarter-turn latch
- External mounting brackets
- Collar studs provided to mount the optional panel
- Grounding provision on door and body
- Gasketed door
- Enclosures are finished with paint over plated surfaces
PRODUCT ATTRIBUTES
- Height: 67 in / 1702 mm
- Width: 36 in / 914 mm
- Depth: 16 in / 406 mm
- Protection Rating: NEMA Type 3R; IP32
- Material: Aluminum
- Finish: Galvanized; Powder Coated / Galvanized; Powder Coated
- Color: Signal White
- Color Code: RAL 9003
- Thickness: 11 ga / 2.3 mm
- Panel Size: 57.00 x 33.00 in / 1448 x 838 mm
- Panel: A60P36
- Mounting Holes: 67.94 x 27.00 in / 1726 x 686 mm
- Drive HorsePower: 100 HP
- Weight: 178 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
WeatherFlo Enclosures feature a forced-air ventilation system for cooling drives or other high-heat producing equipment in outdoor applications.
Purchase panels separately.
WF75LP and WF100LP are constructed of aluminum .100 inch (2.5mm) thick.
BULLETIN NUMBER
A3RD
INDUSTRY STANDARDS
UL 508A Listed; Type 3R; File Number E61997
cUL Listed per CSA C22.2 No 94; Type 3R; File Number E61997
NEMA/EEMAC Type 3R
IEC 60529, IP32
