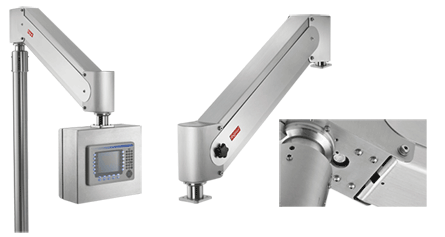

Hoffman VHDS26 Type 4X Syspend VHDS-Motion Arm

Hoffman VHDS26 Type 4X Syspend VHDS-Motion Arm

$5,288.00
SKU:
VHDS26
Shipping:
Calculated at Checkout
Product Type:
Motion Arms
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Syspend VHDS-Motion Arm Type 4X, 10.18x30.65x4.86, Brushed, SS304

  • Corrosion resistant stainless steel housing with provisions for water drainage from arm
  • 26-in. arm supports loads of 45-125 lb. with 13-in. of vertical height adjustment
  • 36-in. arm supports loads of 25-75 lb. with 20-in. of vertical height adjustment
  • Field-adjustable gas spring counterbalance allows the user to adjust lifting force by turning an adjustment mechanism under the arm
  • Angle of gas springs is adjustable (not the pressure); allows lifting force to be increased or decreased at any time for changes in load
  • Tension adjustment at front of the arm provides additional fine-tuning of lifting force
  • Easily attach to an HMI enclosure using a 60-x-60-mm enclosure mounting pattern (enclosure must be ordered separately)
  • 1.25-in. internal cable pathway maintains Type 4, 4X and 12 enclosure rating and protects wires and cables
  • Gasketed mounting surfaces at both ends of arm maintain seal integrity
  • Enclosure and arm can be swiveled 330 degrees with swivel stops available in 30 degree increments
  • Standard models are available with machine-top mounting (wall-mount and post-mount adapters sold separately)
  • Optional floorpost available
  • Adapter is available to attach the arm to Syspend Sanitary HMI enclosure quickly

PRODUCT ATTRIBUTES

  • Height: 10.18 in / 259 mm
  • Width: 30.65 in / 779 mm
  • Depth: 4.86 in / 123 mm
  • Protection Rating: NEMA Type 12; NEMA Type 4; NEMA Type 4X
  • Material: Stainless Steel 304
  • Wall-Mount Adapter: VHDSWALL
  • Post-Mount Adapter: VHDSPOST
  • Load Capacity: 45-125 lb / 20-57 kg
  • Color: Unpainted
  • Finish: Brushed
  • Weight: 46.3 lb

ADDITIONAL PRODUCT DETAILS

Syspend VHD-Motion Arm is a heavy-duty, stainless steel vertical motion pendant arm to effortlessly lift, lower and reposition HMI enclosure. It provides corrosion resistance and suspends process and control equipment for easy cleaning. It lets you easily field-adjust the lifting force as needed to accommodate user configurations and equipment changes up to 125-lb. load. No release handle is required to operate the arm; enclosure stays in place after repositioning.

BULLETIN NUMBER

VM3
