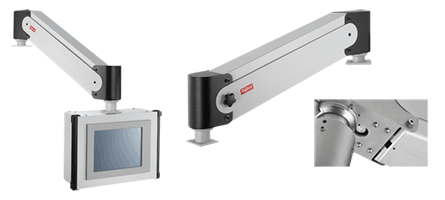

Hoffman VHD36 Type 4 Syspend VHD-Motion Arm

Hoffman VHD36 Type 4 Syspend VHD-Motion Arm

$4,330.00
SKU:
VHD36
Shipping:
Calculated at Checkout
Product Type:
Motion Arms
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Syspend VHD-Motion Arm Type 4, 10.18x40.65x4.86, Lt Gray, Steel

  • 26-in. arm supports loads of 45-125 lb. with 13-in. of vertical height adjustment
  • 36-in. arm supports loads of 25-75 lb. with 20-in. of vertical height adjustment
  • Field-adjustable gas spring counterbalance allows the user to adjust lifting force by turning an adjustment mechanism under the arm
  • Angle of gas springs is adjustable (not the pressure); allows lifting force to be increased or decreased at any time for changes in load
  • Tension adjustment at front of the arm provides additional fine-tuning of lifting force
  • Easily attach to an HMI enclosure using a 60-x-60-mm enclosure mounting pattern (enclosure must be ordered separately)
  • 1.3-in. internal cable pathway maintains NEMA Type 4 and 12 enclosure rating and protects wires and cables
  • Gasketed mounting surfaces at both ends of arm maintain seal integrity
  • Enclosure and arm can be swiveled 330 degrees with swivel stops available in 30-degree increments
  • Standard models are available with machine-top mounting (wall-mount and post-mount adapters sold separately)
  • Optional floorpost available

PRODUCT ATTRIBUTES

  • Height: 10.18 in / 259 mm
  • Width: 40.65 in / 1033 mm
  • Depth: 4.86 in / 123 mm
  • Protection Rating: NEMA Type 12; NEMA Type 4
  • Material: Mild Steel
  • Wall-Mount Adapter: VHDWALL
  • Post-Mount Adapter: VHDPOST
  • Load Capacity: 25-75 lb / 11-37 kg
  • Arm Length: 27 mm
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Weight: 54.5 lb

ADDITIONAL PRODUCT DETAILS

Syspend VHD-Motion Arm is a heavy-duty vertical motion pendant arm to effortlessly lift, lower and reposition HMI enclosure. It lets you easily field-adjust the lifting force as needed to accommodate user configurations and equipment changes up to 125-lb. load. No release handle is required to operate the arm; enclosure stays in place after repositioning.

BULLETIN NUMBER

VM2
