Product Overview

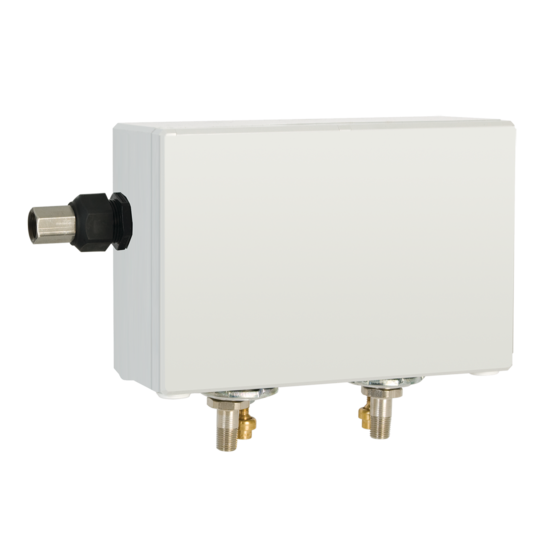

Quiet Vortex Cooler Type 4X, 5000BTU, Lt Gray, Polycarbonate

Quieter operation with noise level of 60-75 dB
Top, side, and front mount allows for versatile installation in confined areas
Operates in environments up to 175 F (80 C)
Cooling capacities up to 5000 BTU/Hr. (1465 W)
Mechanical thermostat reduces energy consumption
NEMA Type 4,4X models are polycarbonate and stainless steel exterior; aluminum and brass internal components
NEMA Type 12 models are polycarbonate and aluminum exterior; aluminum and brass internal components
Supplied with five-micron, automatic drain compressed air filter, cold ducting kit, and cold air muffler

PRODUCT ATTRIBUTES

Height: 6.44 in / 164 mm
Width: 9.44 in / 240 mm
Depth: 5.56 in / 141 mm
Nominal Capacity Btu/h: 5000 Btu/h
Nominal Capacity Watts: 1465 W
Protection Rating: NEMA Type 12; NEMA Type 4; NEMA Type 4X
Material: Polycarbonate
Color: Light Gray
Color Code: RAL 7035
Finish: Smooth Matte
Weight: 11.4 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

Vortex A/C Enclosure Coolers keep enclosures cool, clean and protected even in the harshest environments. Offering flexible installation, these enclosure coolers are ideal in space-restrictive areas where compressed air is readily available. With almost no moving parts, these enclosure coolers are highly reliable and virtually maintenance free.

BULLETIN NUMBER

MCLV

INDUSTRY STANDARDS

Maintains UL/cUL Type 4, 4X when properly installed on a UL/cUL Type 4, 4X enclosure. (Type 4, 4X Models)

UL508 Listed; Type 4, 4X; File No. E249700 (Type 4, 4X Models)

Maintains UL/cUL Type 12 when properly installed on a UL/cUL Type 12 enclosure. (Type 12 Models)

UL508 Listed; Type 12; File No. E249700 (Type 12 Models)

NEMA Type 4,4X Models:

IP66

NEMA Type 12 Models:

IP54

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
