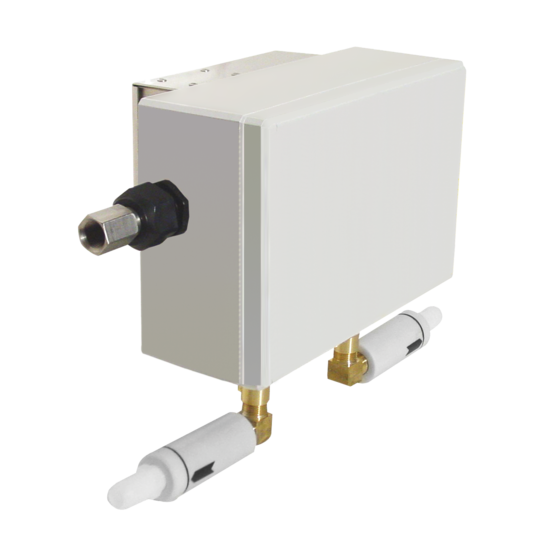

Hoffman VA5016012 Type 4/4X/12 Quiet Vortex A/C Enclosure Cooler

Hoffman VA5016012 Type 4/4X/12 Quiet Vortex A/C Enclosure Cooler

$3,836.00
SKU:
VA5016012
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Quiet Vortex Cooler Type 12, 5000BTU, Lt Gray, Polycarbonate

  • Quieter operation with noise level of 60-75 dB
  • Top, side, and front mount allows for versatile installation in confined areas
  • Operates in environments up to 175 F (80 C)
  • Cooling capacities up to 5000 BTU/Hr. (1465 W)
  • Mechanical thermostat reduces energy consumption
  • NEMA Type 4,4X models are polycarbonate and stainless steel exterior; aluminum and brass internal components
  • NEMA Type 12 models are polycarbonate and aluminum exterior; aluminum and brass internal components
  • Supplied with five-micron, automatic drain compressed air filter, cold ducting kit, and cold air muffler

PRODUCT ATTRIBUTES

  • Height: 6.44 in / 164 mm
  • Width: 9.44 in / 240 mm
  • Depth: 5.56 in / 141 mm
  • Nominal Capacity Btu/h: 5000 Btu/h
  • Nominal Capacity Watts: 1465 W
  • Protection Rating: NEMA Type 12; NEMA Type 4; NEMA Type 4X
  • Material: Polycarbonate
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Smooth Matte
  • Weight: 10.2 lb

ADDITIONAL PRODUCT DETAILS

Vortex A/C Enclosure Coolers keep enclosures cool, clean and protected even in the harshest environments. Offering flexible installation, these enclosure coolers are ideal in space-restrictive areas where compressed air is readily available. With almost no moving parts, these enclosure coolers are highly reliable and virtually maintenance free.

BULLETIN NUMBER

MCLV

INDUSTRY STANDARDS

Maintains UL/cUL Type 4, 4X when properly installed on a UL/cUL Type 4, 4X enclosure. (Type 4, 4X Models)
UL508 Listed; Type 4, 4X; File No. E249700 (Type 4, 4X Models)
Maintains UL/cUL Type 12 when properly installed on a UL/cUL Type 12 enclosure. (Type 12 Models)
UL508 Listed; Type 12; File No. E249700 (Type 12 Models)
NEMA Type 4,4X Models:
IP66
NEMA Type 12 Models:
IP54
