Description
Ultrx Panel Bracket Kit, Plated, Steel
- For use with Ultrx Series Products
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Finish: Zinc Plated
- Color: Unpainted
- Thickness: 12 ga / 2.66 mm
- Weight: 1.66 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Data Sheet
Installation Manual / Instruction Sheet
Declarations
ADDITIONAL PRODUCT DETAILS

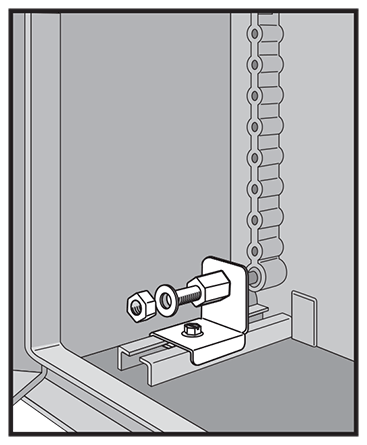

Ultrx Panel Bracket Kit is used with panels and allows panel adjustment from front to rear. Fits all Ultrx enclosure sizes. Mounts on integrally molded body rail. All mounting hardware is included.
Note: Front mounting position is approximately 140mm/5.5 in. back on 400mm enclosures.
BULLETIN NUMBER
UX1Y
