Description

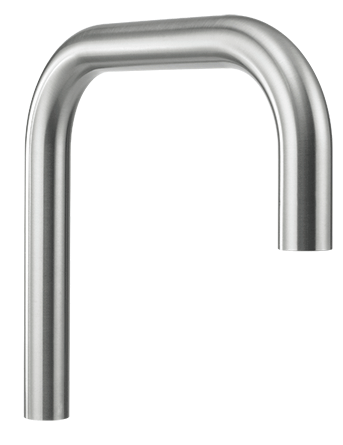

Syspend Sanitary HMI U-Shaped Tube, 800x500x800mm, Brushed, SS304
- Type 304 polished stainless steel
- Outer diameter of 64 mm (2.50 in.)
- Inner diameter of 60 mm (2.37 in.)
- 2-mm (.06-in.) wall thickness
PRODUCT ATTRIBUTES
- Height: 31.5 in / 800 mm
- Width: 19.69 in / 500 mm
- Depth: 31.5 in / 800 mm
- Protection Rating: IP54; IP66; IP69K
- Material: Stainless Steel 304
- Color: Unpainted
- Finish: Polished
- Thickness: 0.45 in / 11.4 mm
- Weight: 17 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Syspend Sanitary HMI U-Shaped Tube is pre-cut and shaped with two 90-degree bends to reduce assembly time. For use in conjunction with Syspend Sanitary HMI Suspension System components.
BULLETIN NUMBER
VM9
