Description

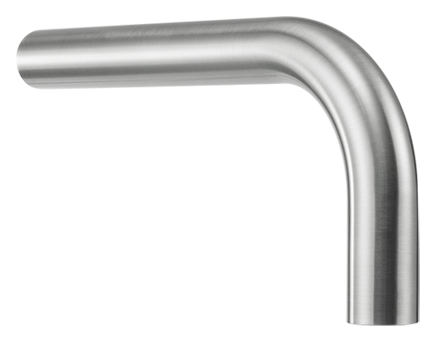

Syspend Sanitary HMI L-Shaped Tube, 500x240mm, Brushed, SS304
- Type 304 polished stainless steel
- Outer diameter of 64 mm (2.50 in.)
- Inner diameter of 60 mm (2.37 in.)
- 2-mm (.06-in.) wall thickness
PRODUCT ATTRIBUTES
- Height: 19.69 in / 500 mm
- Width: 9.45 in / 240 mm
- Protection Rating: IP54; IP66; IP69K
- Material: Stainless Steel 304
- Color: Unpainted
- Finish: Polished
- Thickness: 0.06 in / 2 mm
- Weight: 4.4 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Syspend Sanitary HMI L-Shaped Tube is pre-cut and shaped with a 90-degree bend to reduce assembly time. For use in conjunction with Syspend Sanitary HMI Suspension System components.
BULLETIN NUMBER
VM9
