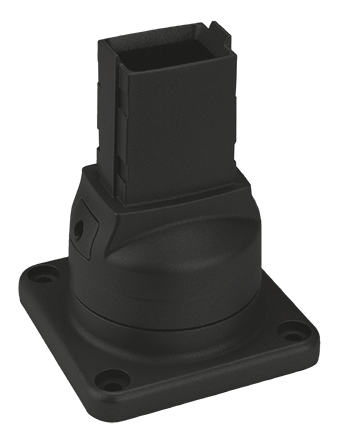

Hoffman S1MTBB Syspend Rotary Base

Hoffman S1MTBB Syspend Rotary Base

$561.00
SKU:
S1MTBB
Shipping:
Calculated at Checkout
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Syspend 180-Max Rotary Base, 6.54x5.04x5.04, Black, Aluminum

  • Set screws and gasket are included
  • Surface mounting fasteners are not provided

PRODUCT ATTRIBUTES

  • Height: 6.54 in / 166 mm
  • Width: 5.04 in / 128 mm
  • Depth: 5.04 in / 128 mm
  • Material: Aluminum
  • Color: Jet Black
  • Color Code: RAL 9005
  • Finish: Powder Coated
  • Weight: 4.1 lb

DRAWINGS AND DOCUMENT DOWNLOADS

Installation Manual / Instruction Sheet

Spec Sheet / Engineering Specification

ADDITIONAL PRODUCT DETAILS

Syspend 180-Max Rotary Base allows the entire suspension system to rotate at the point of attachment on a horizontal surface. Arm can be rotated or turned 300 degrees. Includes a safety stop and maintenance-free bearings.

BULLETIN NUMBER

CS5
